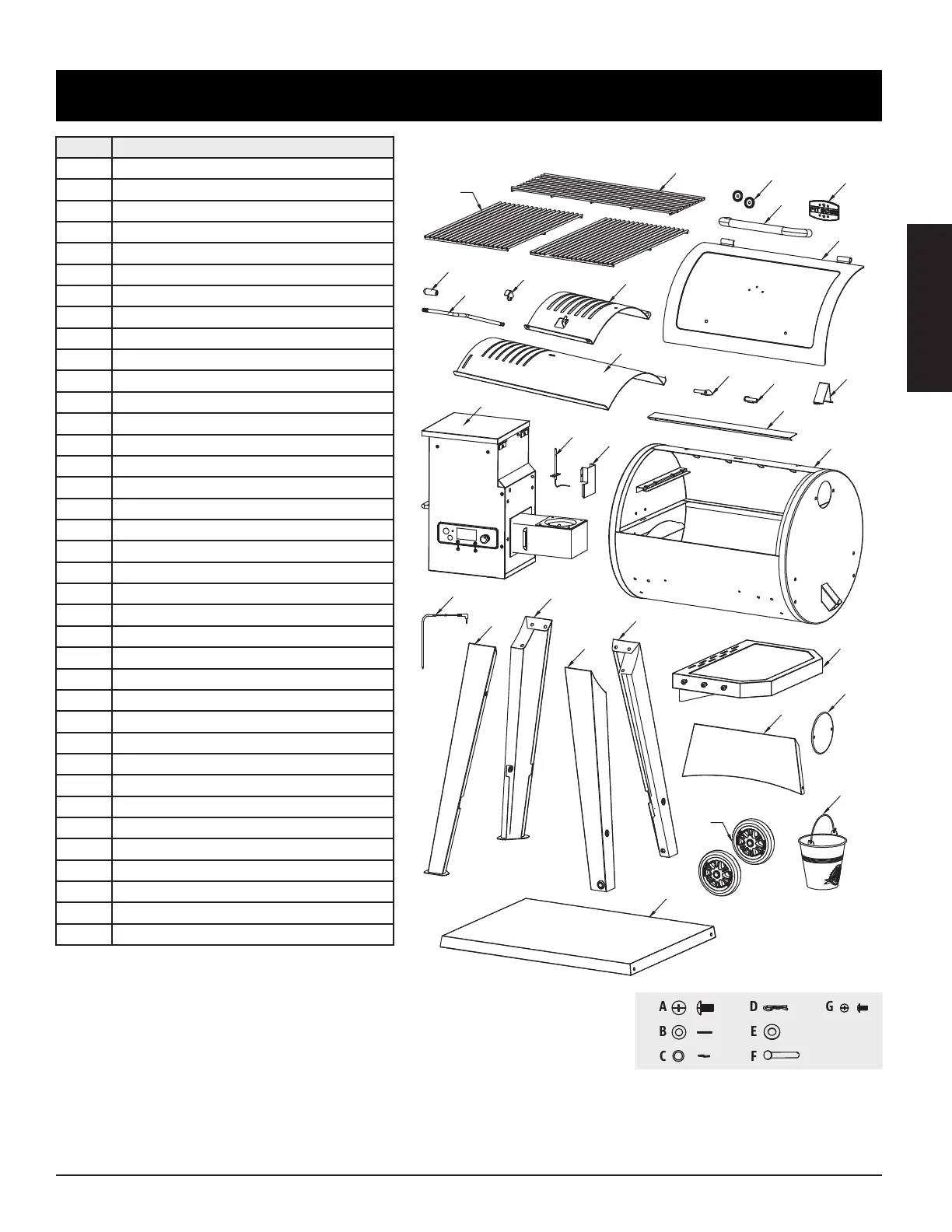

Part# Description
1 Porcelain-Coated Steel Upper Cooking Rack (x1)
2 Porcelain-Coated Steel Cooking Grids (x2)
3 Lid Handle Bezel (x2)
4 Lid Handle (x1)
5 Logo Plate (x1)
6 Main Barrel Lid (x1)
7 Lid Stopper (x1)
8 Flame Broiler Adjusting Bar Handle (x1)
9 Flame Broiler Adjusting Bar (x1)
10 Flame Broiler Locking Plate (x1)
11 Flame Broiler Slider (x1)
12 Flame Broiler Main Plate (x1)
13 Barrel Lid Hinge Left (x1)
14 Barrel Lid Hinge Right (x1)
15 Exhaust Louver (x1)
16 Main Barrel Chamber (x1)
17 Hopper Assembly (x1)
18 Grill Probe (x1)
19 Grill Probe Cover (x1)
20 Meat Probe (x1)
21 Left Support Leg - Front (x1)
22 Left Support Leg - Back (x1)
23 Right Support Leg - Front (x1)
24 Right Support Leg - Back (x1)
25 Side Shelf (x1)
26 Barrel Chimney Hole Cap (x1)
27 Front Panel (x1)
28 Grease Bucket (x1)
29 Bottom Shelf (x1)
30 Wheel (x2)
A Screw (x20)
B Washer (x20)
C Locking Washer (x20)
D Wheel Cotter Pin (x2)
E Wheel Washer (x2)
F Wheel Axle Pin (x2)
G Screw (x4)
NOTE: Due to ongoing product development, parts are subject to change without
notice.
4
5
1
2
3
6
7
8
9
10
11
12
13
14
15
16
17
20
21
22
23
24
25
26
27
28
29
30
18
19
