ENGLISH
8
2.
Parts Required:
1 x Support Panel (#16)
2 x Screw (#G)
Installation:
• Mount the Support Panel to the front two Support Legs of the unit using
two screws. Ensure the flat side of the Support Plate is facing outwards.
3.
Parts Required:
1 x Main Barrel (#9)
12 x Screw (#A)
12 x Washer (#B)
12 x Locking Washer (#C)
2 x Screw (#G)
Installation:
• Lay Main Barrel down on its side on the cardboard, hopper end pointed
upward. Lay the Cart next to the Main Barrel with the Support Panel
facing the front.
• Secure the Main Barrel to each Support Leg using three screws, locking
washers, and washers. Install the hardware from the inside of the

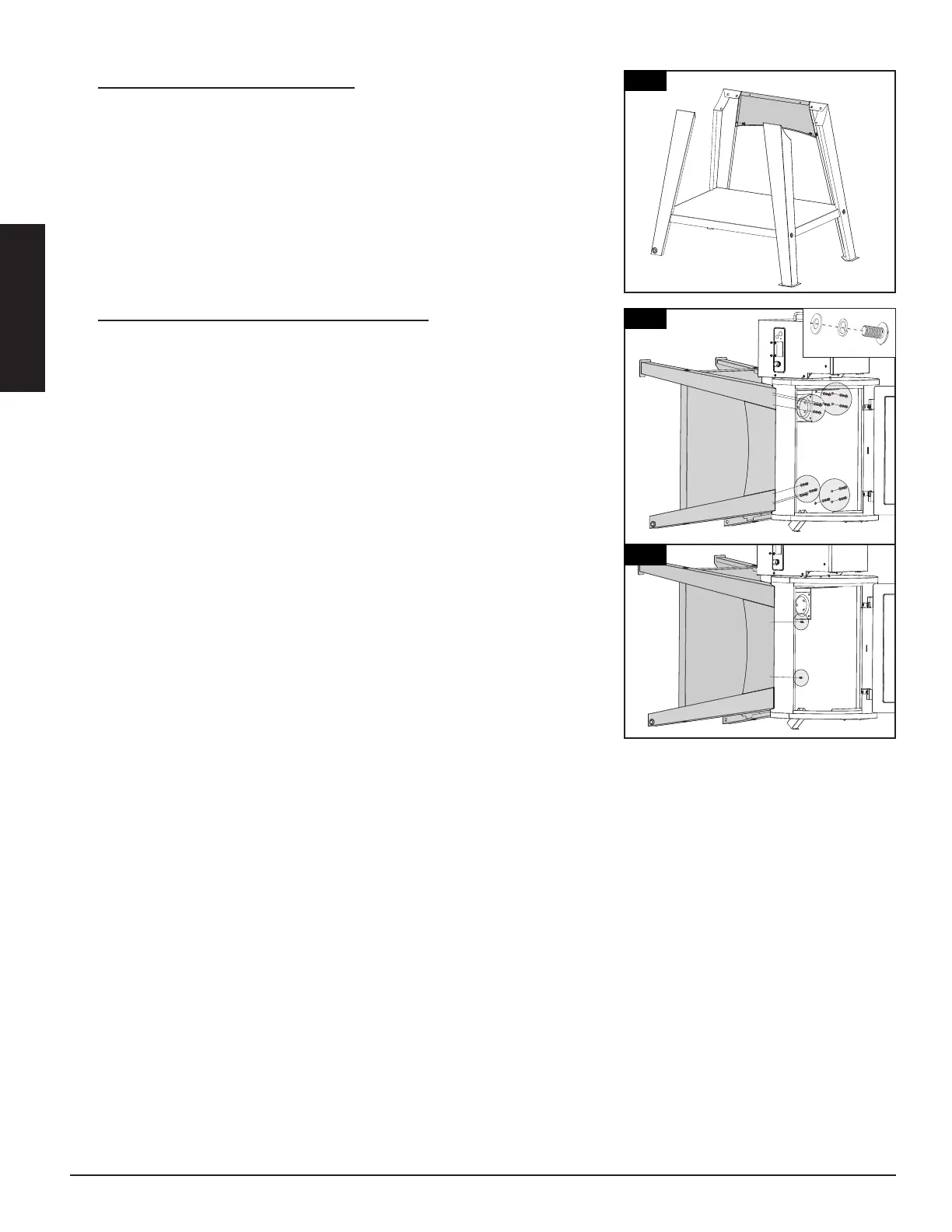

Main Barrel. Note illustration 3A.
• Secure the Support Panel to the Main Barrel using two screws (#G).
Note illustration 3B.
NOTE: Once all screw are installed, then tighten securely into the legs.
2
16
3
3
9
To Next Page
