Pit Boss PB700FB1 - PARTS AND ASSEMBLY; PARTS & SPECS

ENGLISH
6
  

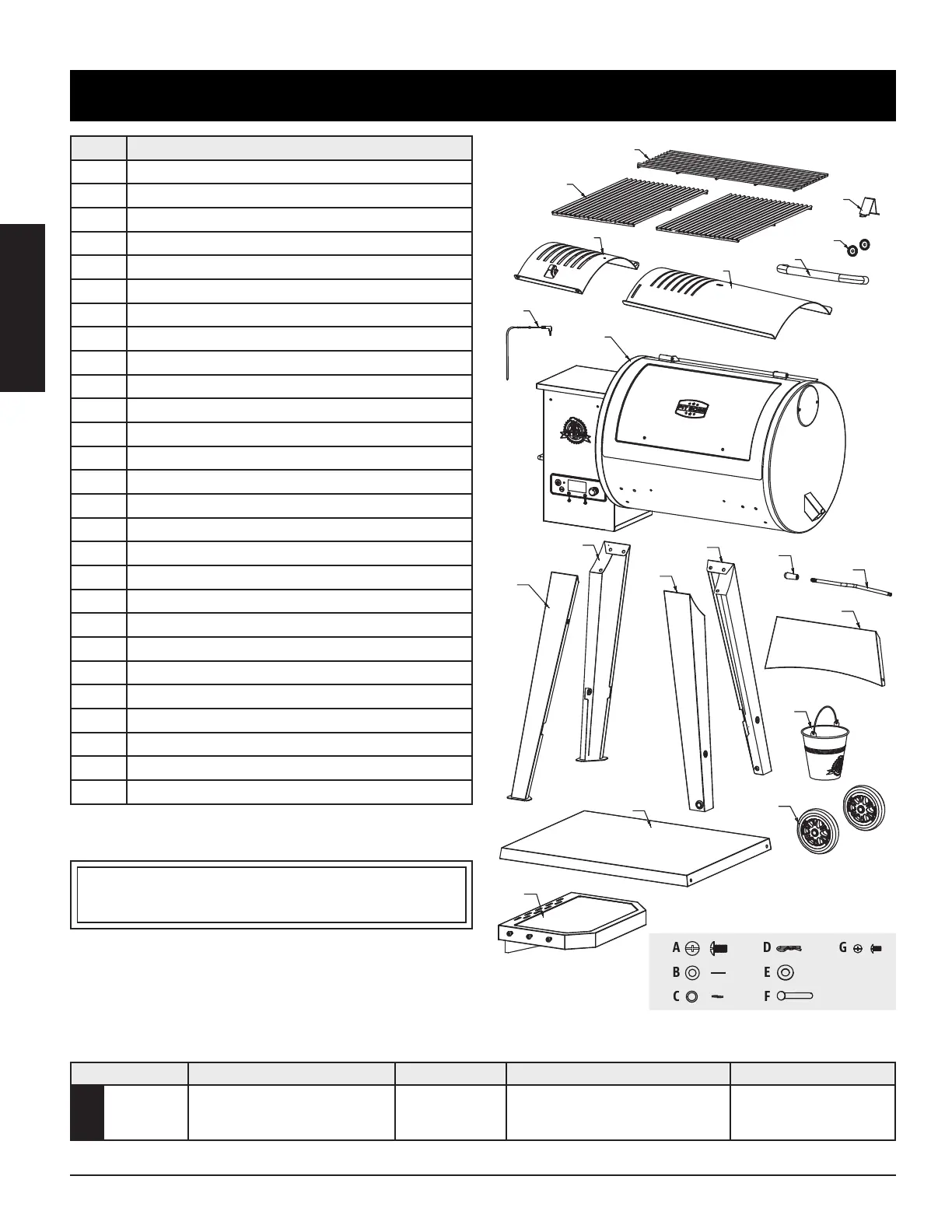

Part# Description
1 Porcelain-Coated Steel Upper Cooking Rack (x1)
2 Porcelain-Coated Steel Cooking Grids (x2)
3 Lid Stopper (x1)
4 Lid Handle Bezel (x2)
5 Lid Handle (x1)
6 Flame Broiler Slider (x1)
7 Flame Broiler Main Plate (x1)
8 Meat Probe (x1)
9 Main Barrel (x1)
10 Left Support Leg - Front (x1)
11 Left Support Leg - Back (x1)
12 Right Support Leg - Front (x1)
13 Right Support Leg - Back (x1)
14 Flame Broiler Adjusting Bar Handle (x1)
15 Flame Broiler Adjusting Bar (x1)
16 Front Panel (x1)
17 Bottom Shelf (x1)
18 Grease Bucket (x1)
19 Wheel (x2)
20 Side Shelf (x1)
A Screw (x20)
B Washer (x20)
C Locking Washer (x20)
D Wheel Cotter Pin (x2)
E Wheel Washer (x2)
F Wheel Axle Pin (x2)
G Screw (x4)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
PB – ELECTRIC REQUIREMENTS
110-120 V, 60 Hz, 250 W, 3-PRONG GROUNDED PLUG
MODEL ASSEMBLED (WxDxH) WEIGHT COOKING AREA TEMPERATURE RANGE

7001
1,313   712   1,190 
/ 51.7 .  28.0 .  46.8 .
60.0 
/ 132.2 
  3,332  / 516.5 
2
  1,467  / 227.4 
2
  4,799  / 743.9 
2
82260° / 180500°
4
5
1
2
3
6
7
8
9
10
11
12
13
14
15
16
17
20
18
19
  
 
 
