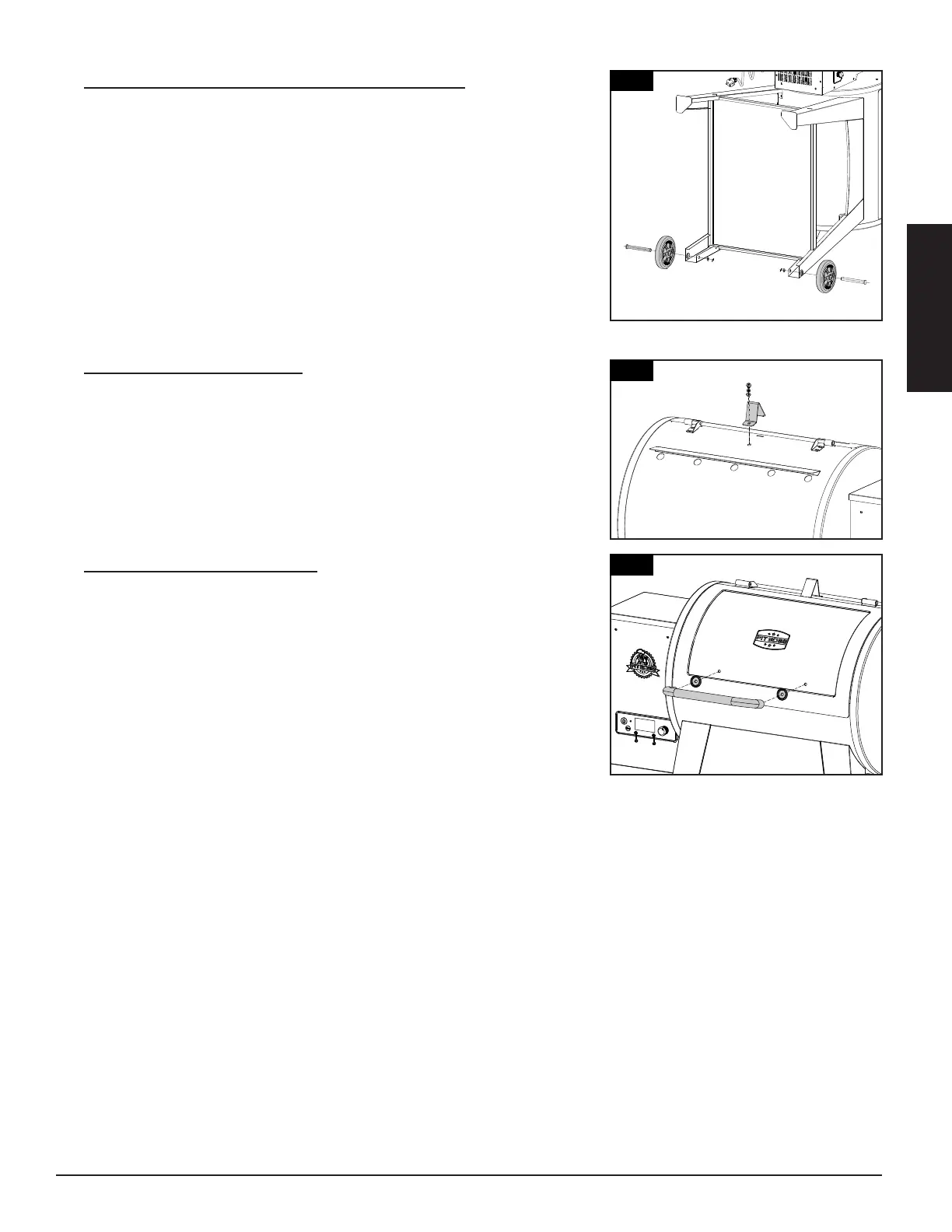

4.
Parts Required:
2 x Wheels (#19)
2 x Wheel Cotter Pin (#D)
2 x Wheel Washer (#E)
2 x Wheel Axle Pin (#F)
Installation:
• Attach the Wheel to the Support Leg by inserting the Wheel Axel Pin
through the leg hole, Wheel Washer, and finally secure using the Wheel
Cotter Pin. Note illustration. Repeat installation for the other wheel.
• Carefully lift the grill into an upright position.
5.
Parts Required:
1 x Lid Stopper (#3)
Installation:
• Secure the Lid Stopper onto the top of the Main Barrel using the
pre-installed hardware on top of the Main Barrel.
6.
Parts Required:
2 x Lid Handle Bezel (#4)
1 x Lid Handle (#5)
Installation:
• Remove the pre-installed hardware from the lid handle. From inside
the barrel lid, insert one screw to protrude to the outside. Add a bezel
on the screw, then hand-tighten the screw, locking washer, and washer
(from the inside) into the lid handle. Repeat same installation for other
end of lid handle.
4
19
19
5
3
6
4
5
4
To Next Page
