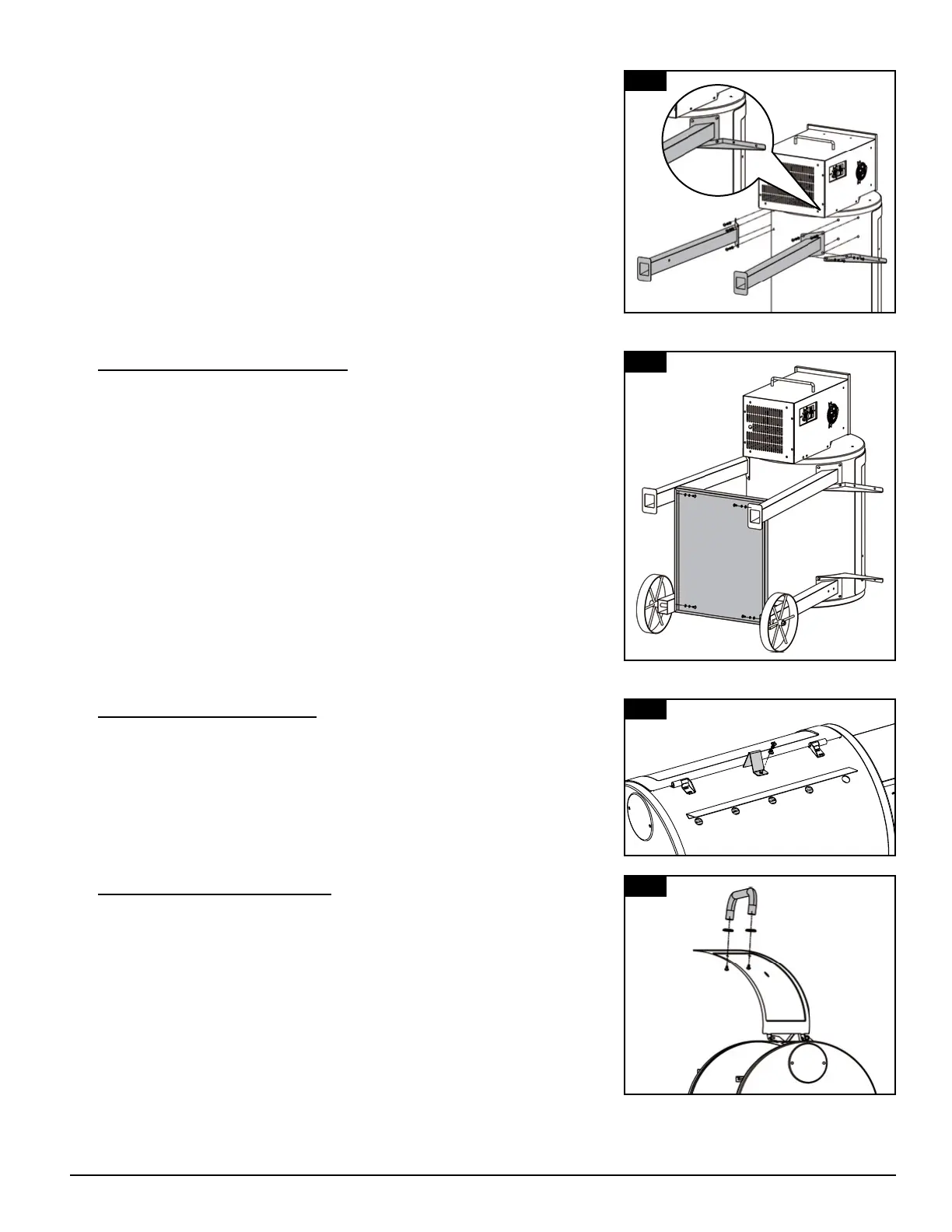

pre-drilled holes. Repeat installation for second leg with wheel (front
side), but also install one front shelf support using the same hardware.
Note illustration 2 for guidance.
NOTE: Front-facing leg with wheel will have two screws pre-mounted
into the leg. This is for bottle opener installation in later step.
• Mount one stationary leg to the hopper end of the back of main barrel
using four screws, locking washers, and washers, through the four pre-
drilled holes. Repeat installation for second stationary leg (front side),
but also install one front shelf support using the same hardware. Note
illustration 2 for guidance.
NOTE: Fasten screws of the support legs only half-way to allow
easier installation of bottom shelf in next step.
3.
Parts Required:
1 x Bottom Shelf
(#21)
4 x Screw
(#A)
4 x Locking Washer
(#B)
4 x Washer
(#C)
Installation:
• From underneath, secure the bottom shelf to each leg using a screw,
locking washer, and washer. Ensure the flat surface of the shelf is
facing up towards the grill barrel.
NOTE: Fasten screws of the bottom shelf only half-way all screws
have been installed. Once all screws are installed, then tighten
securely into the legs.
• Once the shelf is secure, carefully lift the grill into an upright position.
4.
Parts Required:
1 x Lid Stopper
(#3)
Installation:
• Secure the lid stopper onto the top of the main barrel using the pre-
installed screw on the top of the main barrel.
5.
Parts Required:
1 x Lid Handle
(#8)
2 x Lid Handle Bezel
(#7)
Installation:
• Remove the pre-installed screws from the lid handle. From inside the
barrel lid, insert one screw to protrude to the outside. Add a bezel on the
screw, then hand-tighten the screw (from the inside) into the lid handle.
Repeat same installation for other end of lid handle.
3
4
5
21
3
8
7
2
14
14
11
11
111
111
