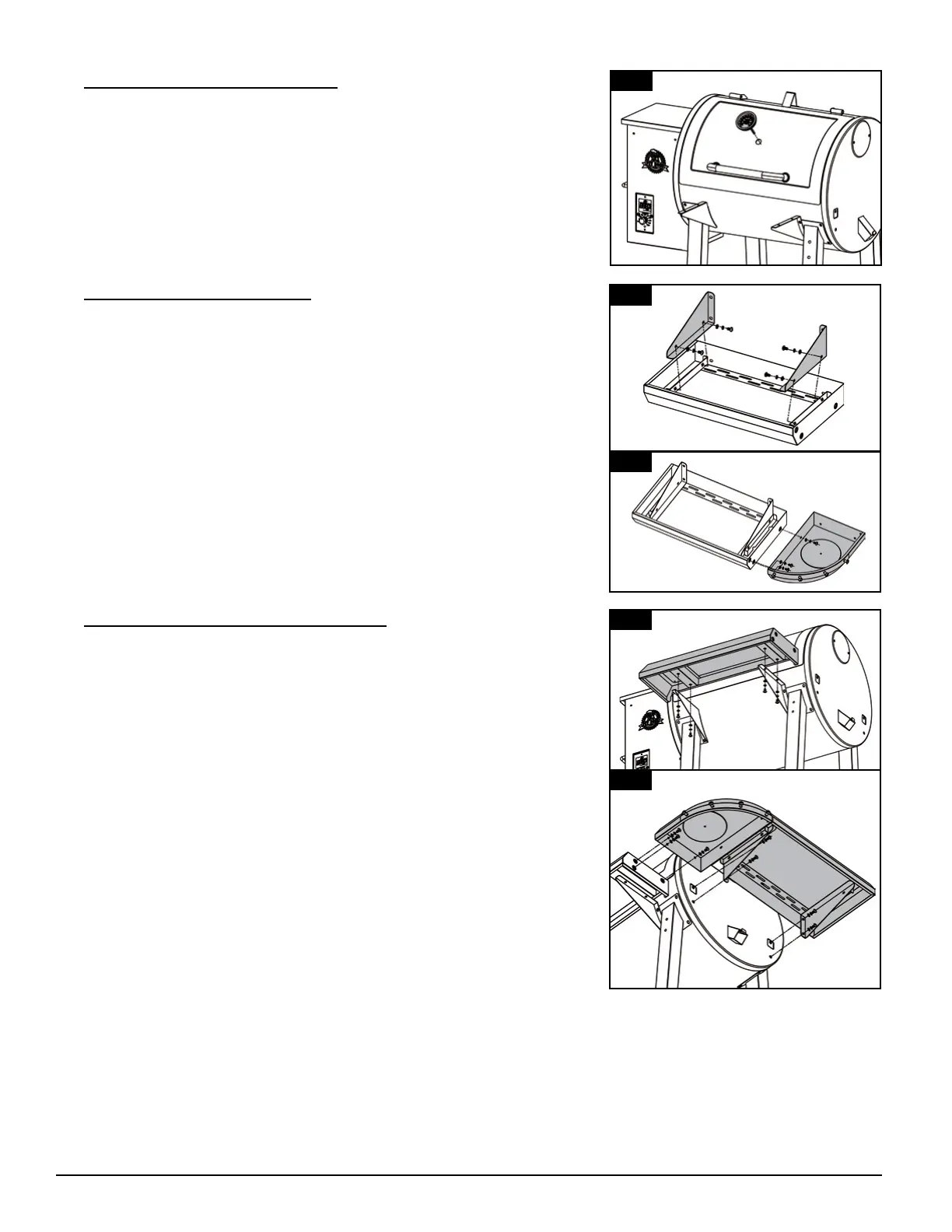

9
6.
Parts Required:
1 x Thermometer
(#6)
Installation:
• Remove the pre-installed nut from the thermometer. Insert the
thermometer into the hole provided on the top of the lid of the main
barrel, then secure by re-installing the nut from the inside. Rotate the
thermometer so the text is level and upright.
7.
Parts Required:
1 x Side Shelf
(#18)
2 x Side Shelf Supports
(#10)
1 x Corner Shelf
(#19)
7 x Screw
(#A)
7 x Locking Washer
(#B)
7 x Washer
(#C)
Installation:
• Turn the side shelf upside down. Install the side shelf supports onto the
side shelf using four washers, locking washers, and screws. Note 7.
• Next, assemble the corner shelf onto the side shelf using three washers,
locking washers and screws. Note illustration 7.
8.
Parts Required:
1 x Front Shelf
(#20)
11 x Screw
(#A)
11 x Locking Washer
(#B)
11 x Washer
(#C)
Installation:
NOTE: Do not tighten any screws completely until all screws have
been installed. Once all screws are installed, then tighten securely.
• First, mount the front shelf onto the front shelf supports using four
washers, locking washers, and screws. Note illustration 8.
• Next, mount the corner and side shelf onto the front shelf and grill
barrel end using seven washers, locking washers, and screws. Note
illustration 8 for guidance.
IMPORTANT: Avoid using shelves to move or lift the grill. The weight
of the unit will cause the shelves to break, which is not covered by
warranty.
6
7
8
8
6
16
18
19
20
19
18
7
10
10
102
101
