Use a suitable dope for the threads.
¦ Loosen the fixing screws.
¦ Extract the hose-carrier.
¦ Fix it into the required position
by tightening the screws.
Minimum
hose
diameter: "
Fuel surface
Tank
The maximum length of the hose must conform to "Aention" box
provided on the following page.

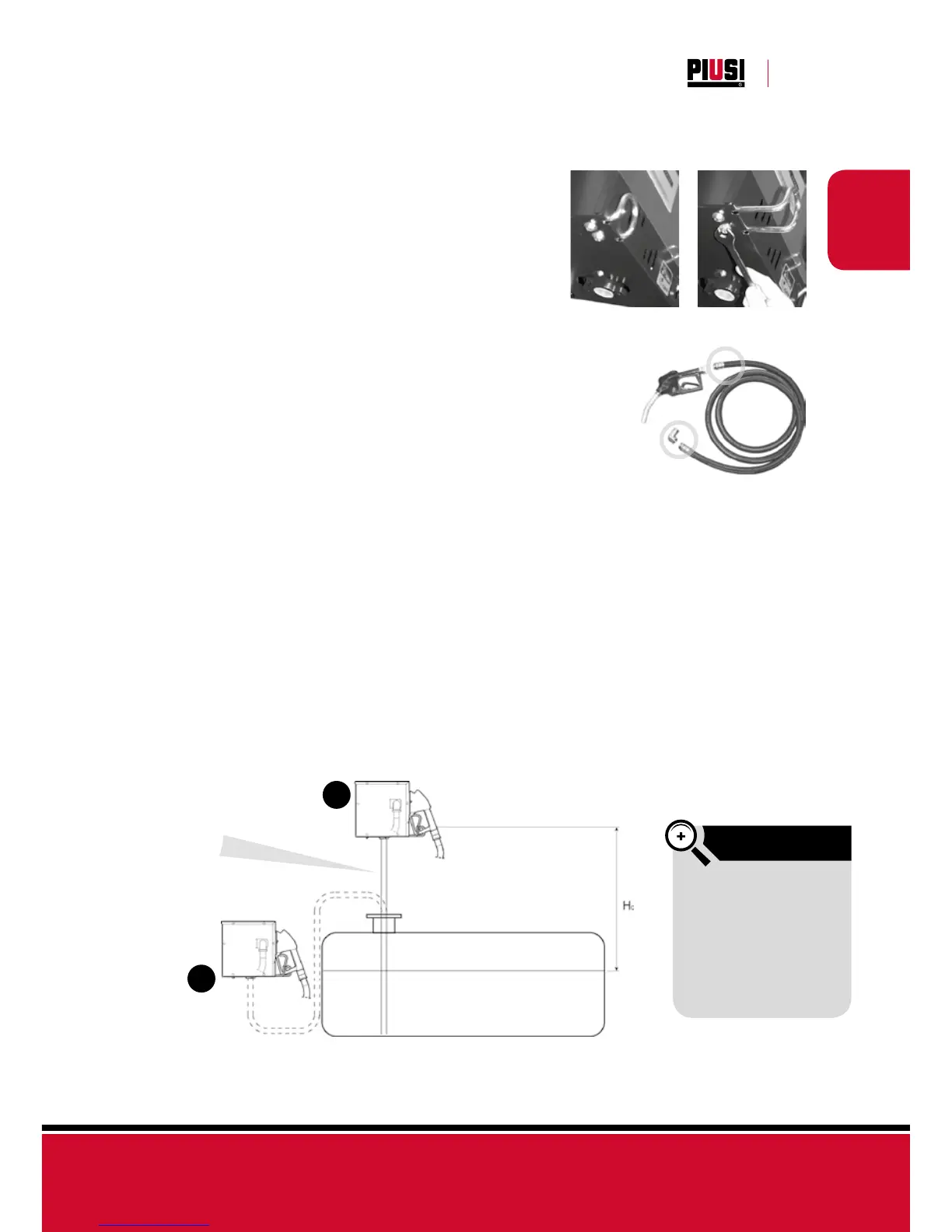

CUBE can be installed: (a) above tank, (b) at tank level.
Installing the
hose and nozzle
Pulling out the
hose support
hook
Dispensing
system
installation
diagram
CUBE dispenser can be installed outside. Nevertheless, it is advisable to locate it under the
shelter of a roof to ensure the dispenser's longevity and provide greater comfort during refuelling
in the event of bad weather. The installation of the dispenser must be carried out by skilled
personnel and performed according to the instructions provided in this chapter.
a
b
The H
º
difference
in height between
the fuel surface and
the pump in the
dispenser must not
be higher than 3 m!
NOTE
