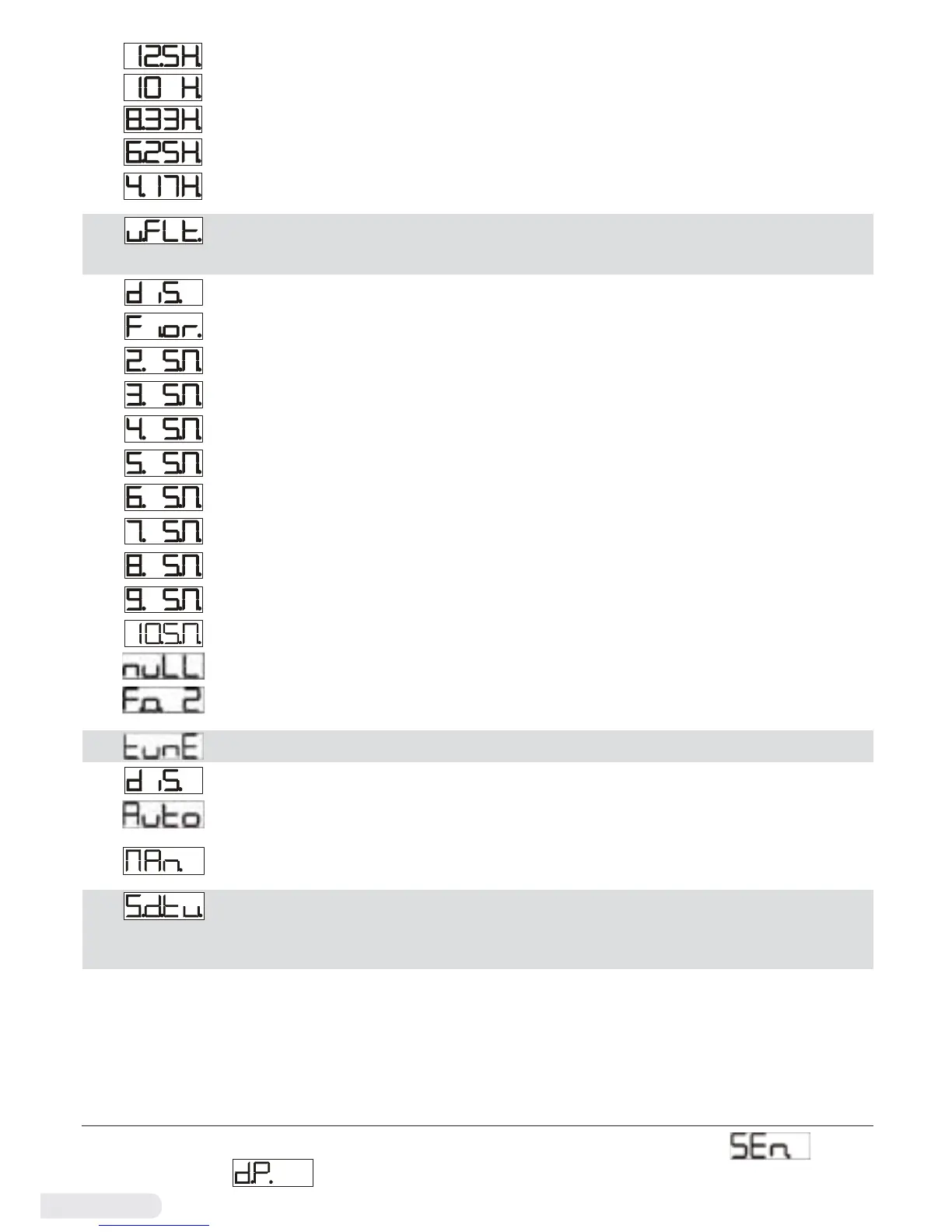

EN 22
12.5 Hz
10 Hz
8.33 Hz
6.25 Hz
4.17 Hz (Minimum speed conversion)
30 Visualization Filter: Slow down the update of process value
visualized on display, to simplify reading
Disabled with pitchfork (maximum speed of display update)
First order fi lter with pitchfork
2 Samples Mean
3 Samples Mean
4 Samples Mean
5 Samples Mean
6 Samples Mean
7 Samples Mean
8 Samples Mean
9 Samples Mean
10 Samples Mean (Maximum slow down of display update)
Disabled without pitchfork
First order fi lter
31 Tune: Tuning type selection
Disabled (Default)
Automatic (P.I.D. parameters are calculated at activation and
at change of set point)
Manual (launch by keyboard)
32 Setpoint Deviation Tune: Select the deviation from the
command setpoint for the threshold used by autotuning to
calculate the P.I.D. parameters
0-5000 digit* (tenths of degree if temperature), Default: 10.
The display of the decimal point depends on the setting of parameter and
the parameter .
*
