4.4.3 List of Limit Plans
Limit plans are designed to perform checks of the measured channel parameters while scanning
the channel data logger, as well as during a quick check in the Channel and Scan measurement
modes. In the main selection menu, the icon corresponds to the mode.
This mode allows performing all operations with limit plans: viewing, editing, deleting, creating a

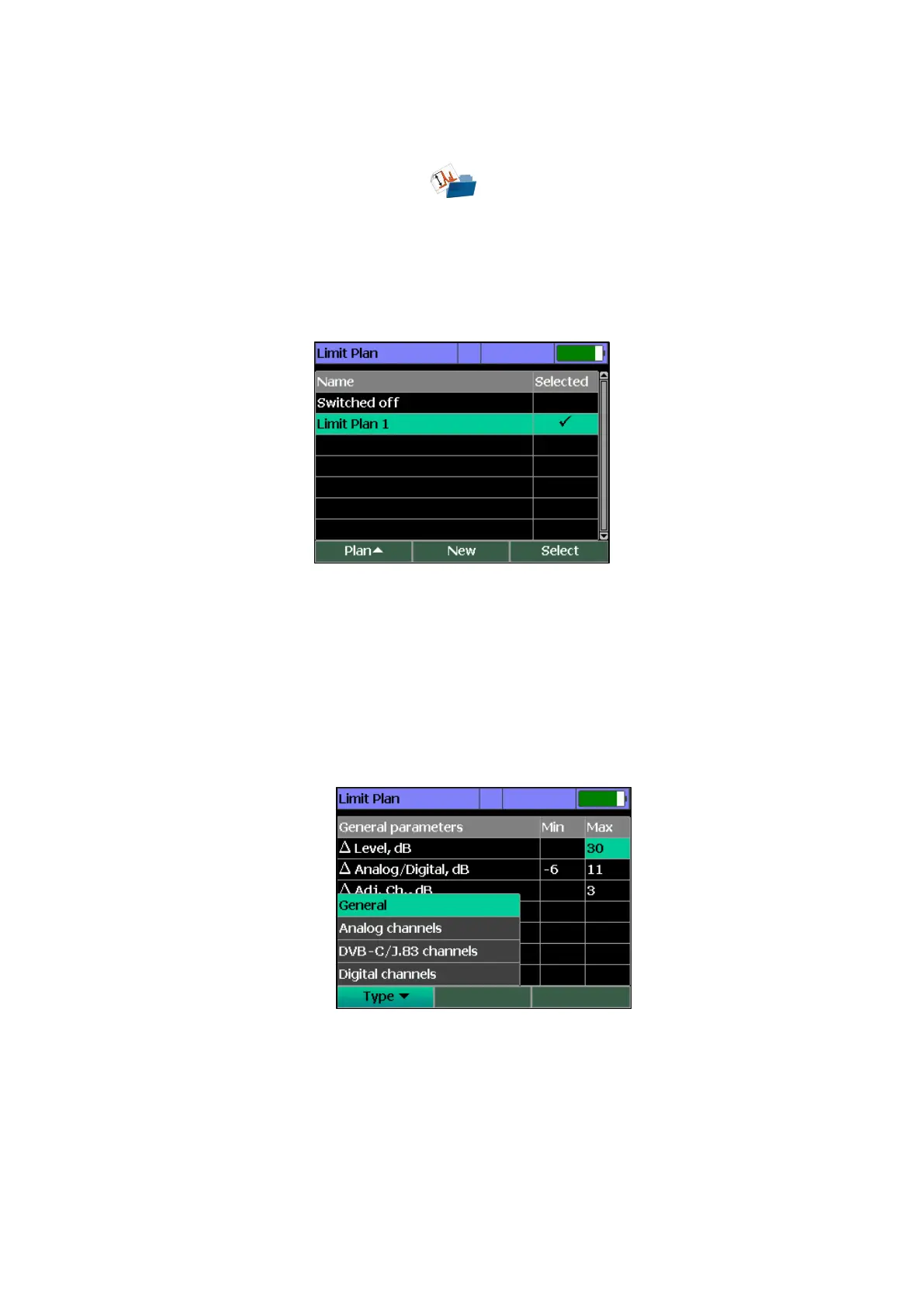

new one. The screen view is shown in Figure 4.10. The table contains the names of the limit plans
and their status. To select the desired plan limit and enable quick check of parameters, press
«F3/Select».
Figure 4.10
To work without checking, select «Switched off».
To edit the selected limit plan or delete it, press «F1/Plan». In the pop-up menu, select the
appropriate command. To create a new limit plan, press «F2/New».
In the editing mode, there are four tables with limit plan parameters, which can be selected in the
pop-up menu by pressing «F1/Type» (Figure 4.11).
Figure 4.11
