Note
Please link to PLANET Download Center and download BSP360-
PV&BAT_calculation. The calculation list can help you to select
solar panel and battery. Refer to Section 6 for customer support.

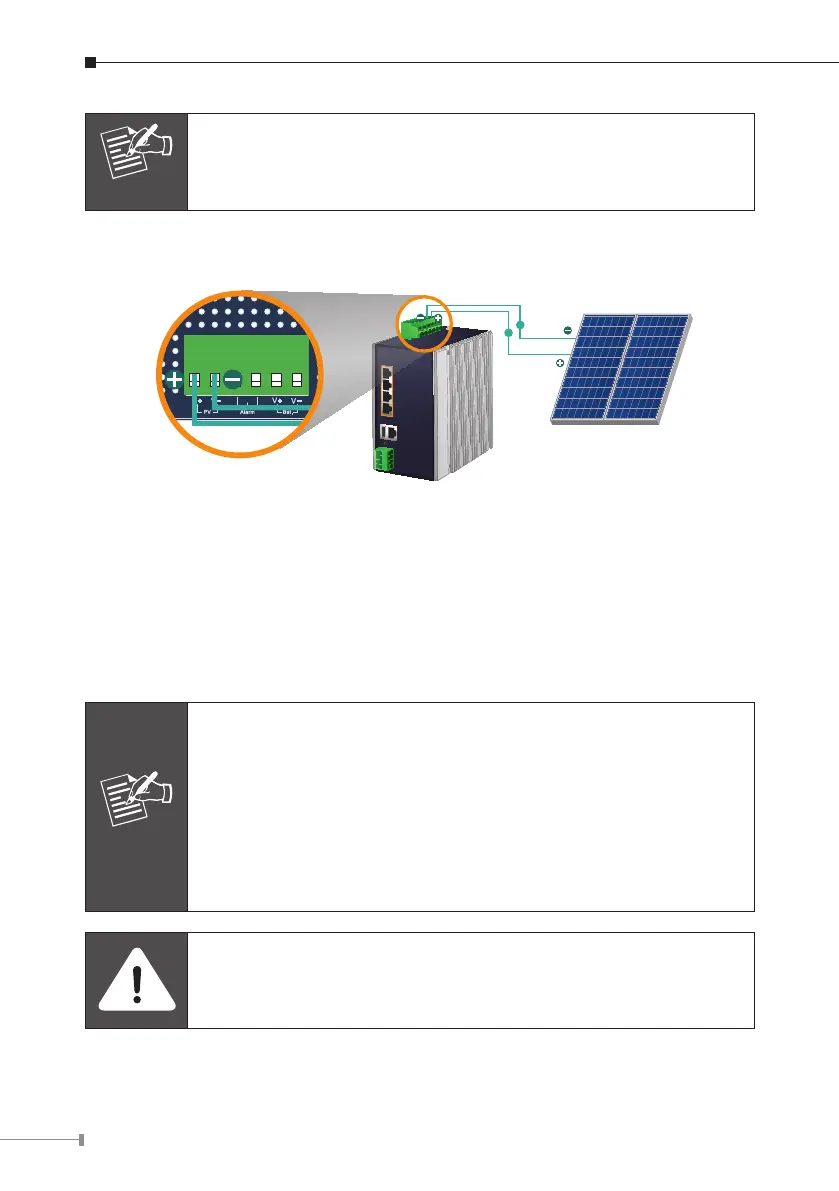

Step 3. Installing PV Panel
Solar PV
DC
DC
Battery DC Input: 24V , 10A
PV DC Input: 24-45V , 8.8A ma x.
Max. A larm Loading: 24V, 1A
1 2 3 4 5 6
PV In
1. Connect the negative electrode of the PV panel to the terminal for the
negative electrode of the PV panel on the BSP-360.
2. Connect the positive electrode of the PV panel to the terminal for the posi-
tive electrode of the PV panel on the BSP-360.
3. After the PV is well connected to the BSP-360 and providing 24V or above
voltage, the System LED will blink fast for battery charge if the battery is
not full.
Note
Be noted for the thickness of electric wire and please refer to the
section -- Recommended Use of the Connected Wires in the
Quick Installation Guide.
Check the total power consumption of your device and the
sunshine duration of your area from the weather bureau for a
proper PV. Improper PV could shorten the battery life or provide
insufficient power to the BSP-360.
The BSP-360 supports a maximum of 45V 8.8A DC input.
