Planet FSD-1008HP User Manual

10
Standard
VLAN
Extend
This mode makes the FSD-1008HP operate as a VLAN
isolation switch and
1. Port 1 to port 8 will isolate respectively.
2. Port 1 to port 8 can only communicate with port 9 and
port 10 (uplink port).
3. 30-watt PoE transmit distance of 250m at speed of 10Mbps.
Note
Please reboot the FSD-1008HP after adjusting the DIP switch.

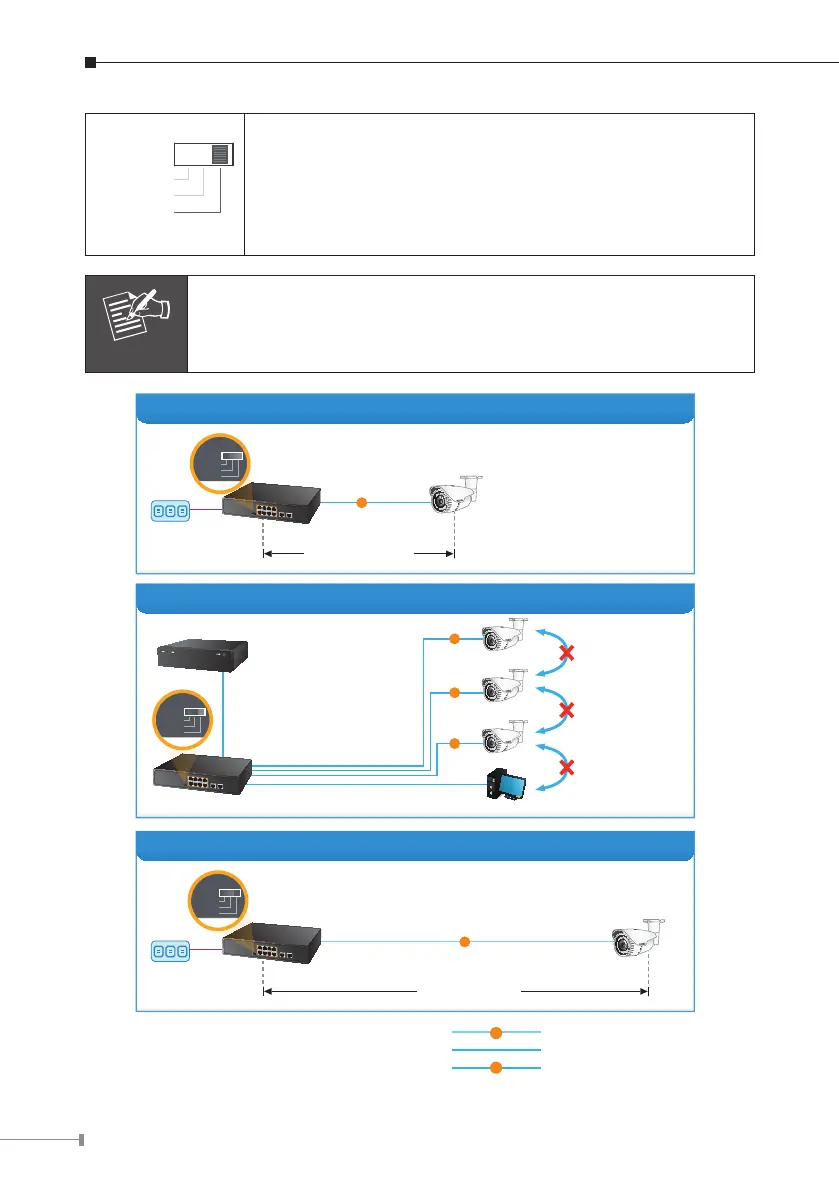

Extended PoE Mode
Power
250 meters (820 feet)
Default PoE Mode
Power
PoE IP Camera
PoE
100 meters (328 feet)
FSD-1008HP
PoE
VLAN Isolation Mode
NVR
Port 9 and Port 10
Access Permitted
PC
Ports 1 to 8
Access Denied
PoE
PoE
PoE
PoE
10BASE-T UTP with PoE
PoE
100BASE-TX UTP with PoE
100BASE-TX UTP
Standard
VLAN
Extend
Standard
VLAN
Extend
FSD-1008HP
FSD-1008HP
Standard
VLAN
Extend
PoE IP Camera
IP Camera
IP Camera
IP Camera
