2.1.1 LED Indicators
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
Per 10/100Mbps Port
LED Color Function
PoE-in-use Orange
Lights to indicate the port is providing 55V DC in-line
power. (1-8 ports)
Speed/
LNK/ACT
Green
Lights to indicate the Switch is successfully connecting to
the network at 10/100Mbps.
Blinks to indicate that the Switch is actively sending or
receiving data over that port.

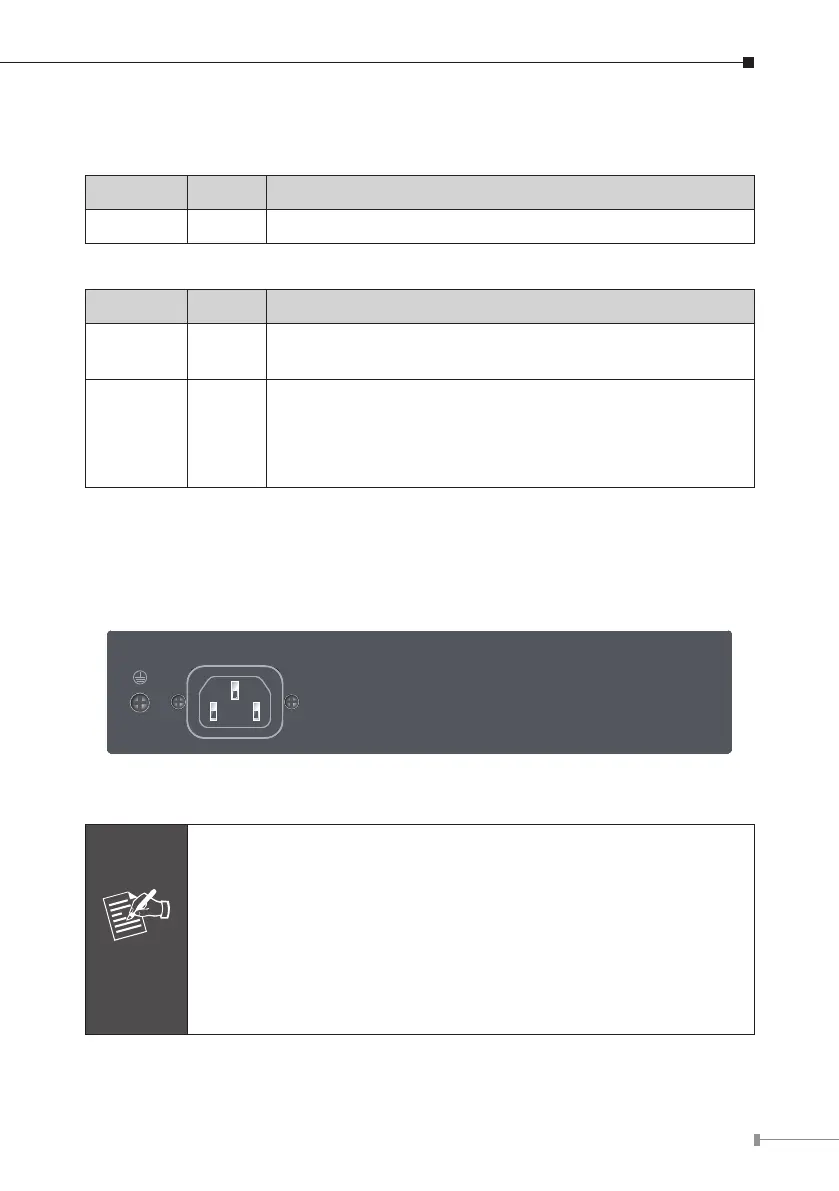

2.2 Rear Panel
The rear panel of the FSD-1008HP has an AC inlet power socket, which accepts
input power of 100 to 240V AC, 50-60Hz.
100-240V AC
50/60Hz
Figure 2-2: FSD-1008HP Switch Rear Panel
Power
Note
1. The device is a power-required device which means it will not
work till it is powered. If your networks should be active all the
time, please consider using UPS (Uninterrupted Power Supply)
for your device. It will prevent you from network data loss or
network downtime.
2. In some areas, installing a surge suppression device may also
help to protect your FSD-1008HP from being damaged by
unregulated surge or current to the FSD-1008HP.
