Step 5: Supply power to the PoE Ethernet Switch.
A. Connect one end of the power cable to the DC power adapter and
connect its DC plug connector to the PoE Ethernet Switch.
B. Connect the power plug of the power cable to a standard wall outlet.
When the PoE Ethernet Switch receives power, the Power LED should remain solid
Green.
3.2 Magnet Installation
To install the PoE Ethernet Switch on magnetic surface, simply follow the following
steps:
Step 1: Attach the 4 magnets to the recessed areas on the bottom of the PoE
Ethernet Switch.
Step 2: Use 4 screws from package to secure the magnets to the PoE Ethernet
Switch, as shown in Figure 3-2.
GSD-908HP
PWR
PoE Usage 100%
ACTLNK
PoE In-Use
87654321
9-
Uplink

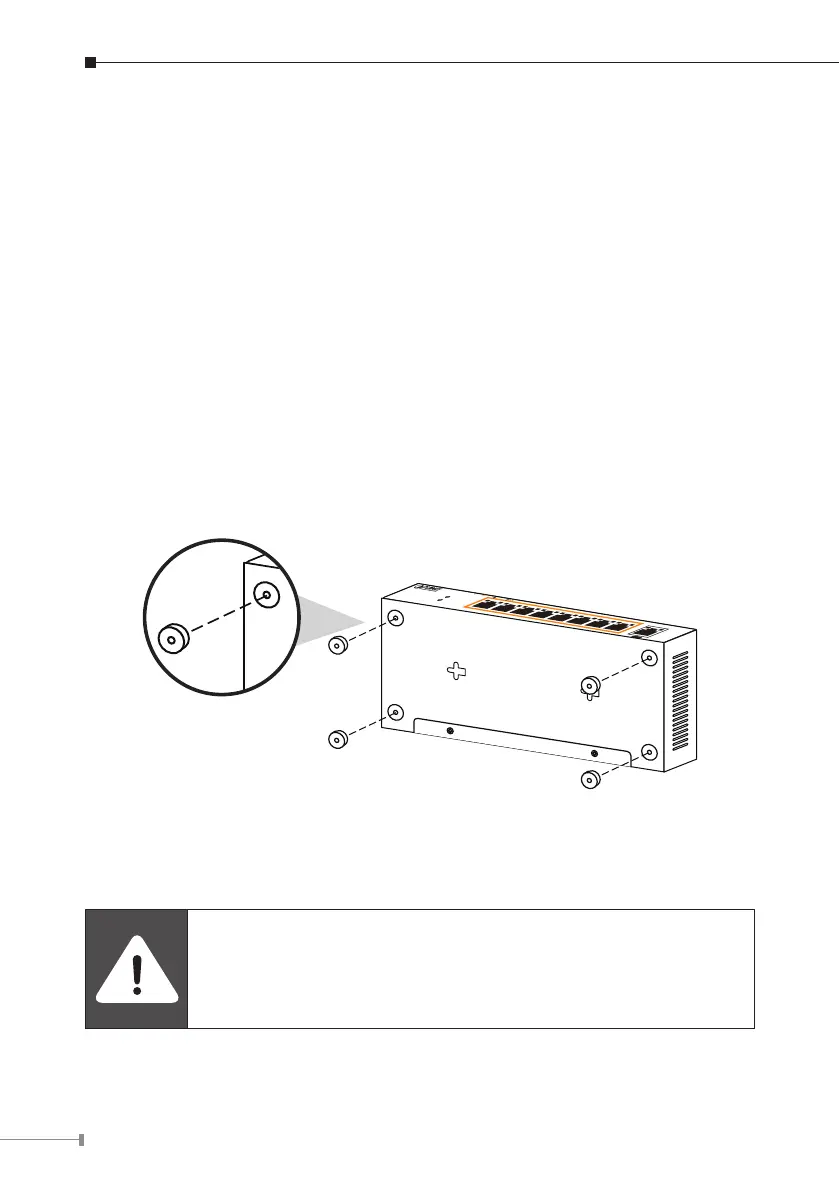

Figure 3-2: PoE Ethernet Switch Magnets Installation
Step 3: Place the PoE Ethernet Switch (installed with magnets) on a magnetic
surface in a proper way.
When installing the PoE Ethernet Switch on a magnetic surface,
please be careful with your fingers.
