Planet IGS-5225-4T2S User Manual

7
 IGS-5225-4T2S: DC 12~48V, AC 24V
Max. fault loading: 24V, 1A
V1+
V2+
PWR1
PWR2Fault
DC Input: 12-48V , 1.2A max.
AC Input: 24V
, 1.1A max.
1 2 3 4 5 6

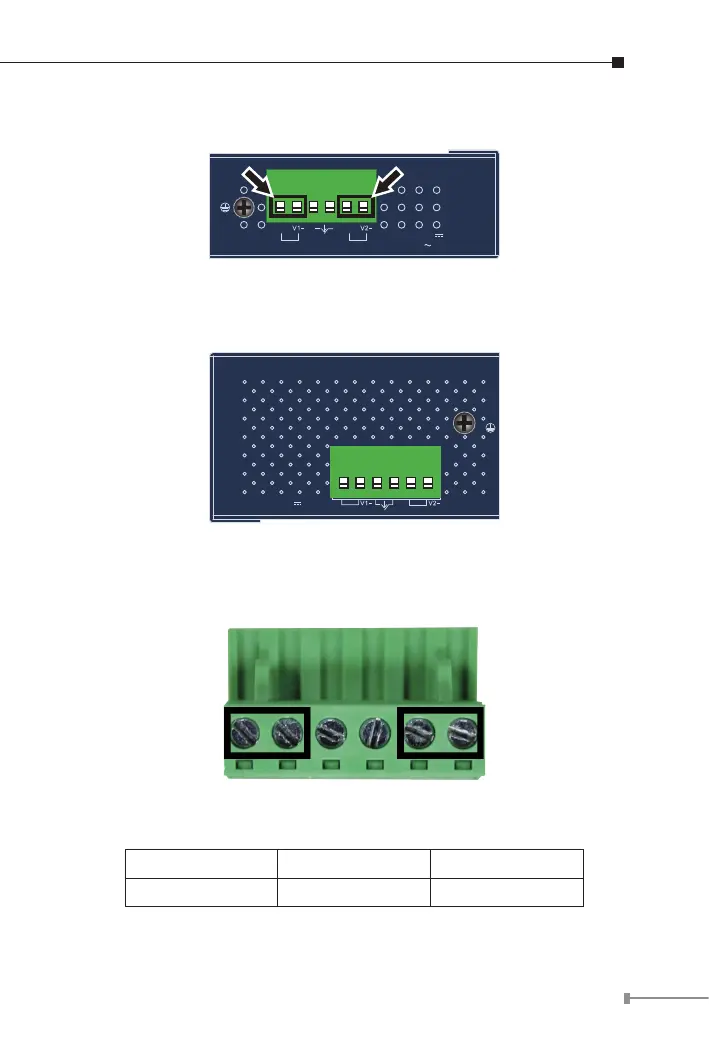

Figure 3-3: IGS-5225-4T2S Upper Panel
 IGS-5225-4P2S: DC 48~56V
FaultPWR1
V1+
V2+
PWR2
Max. fault loading: 24V, 1A
DC Input: 48-56V
,
3.5A max.
1 2 3 4 5 6
Figure 3-4: IGS-5225-4P2S Upper Panel
2. Tighten the wire-clamp screws for preventing the wires from loos-
ening.
1 2 3 4 5 6
V+ V- V+ V-
Power 1 Power 2
Positive (+) Pin Negative (-) Pin
IGS-5225 Series Pin 1/5 Pin 2/6
