4. Terminal Setup

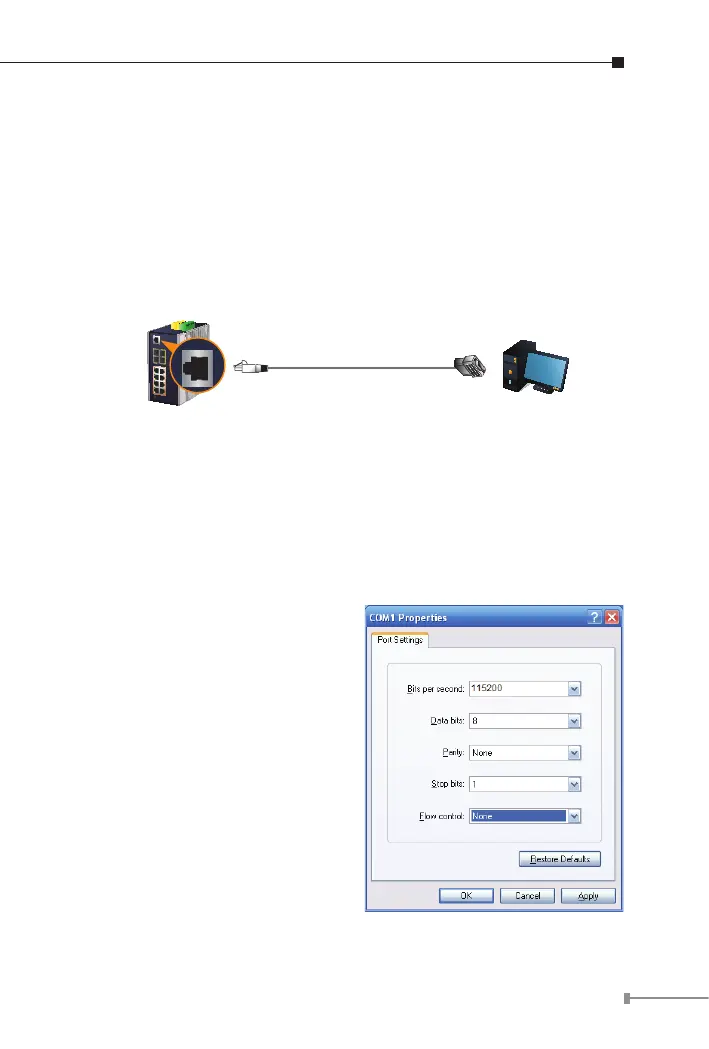

To congure the system, connect a serial cable to a COM port on a
PC or notebook computer and to RJ45 type serial (console) port of the
Industrial Managed Switch. The console port of the Industrial Managed
Switch is DCE already, so that you can connect the console port
directly through PC without the need of null modem.
PC/Workstation with
Terminal Emulation Software
RJ45 to DB9 RS232 Cable
Serial Port
Console Port
115200,N,8,1
IGS Industrial Managed Switch
11
Console
115200,N,8,1
P1 P2 Fault
DIDO
Ring
11
R.O.
12
12
PoE Usage
ACT1000 LNK
ACT100 LNK
A terminal program is required to make the software connected to the
IGS-5225 series Industrial Managed Switch.
1. Run terminal program on the OS.
2. When the following screen appears, make sure that the COM port
shouldbeconguredas:
z Baud: 115200
z Parity: None
z Data bits: 8
z Stop bits: 1
z Flow control: None
