Planet IGS-5225-4T2S User Manual

8
Note
1. The wire gauge for the terminal block should be in
the range from 12 to 24 AWG.
2. Please check the wire AWG Ampere specification
before connecting PLANET Industrial Managed Switch.
Caution
PWR1 and PWR2 must provide the same DC voltage
for power load balance while operating with dual power
input.

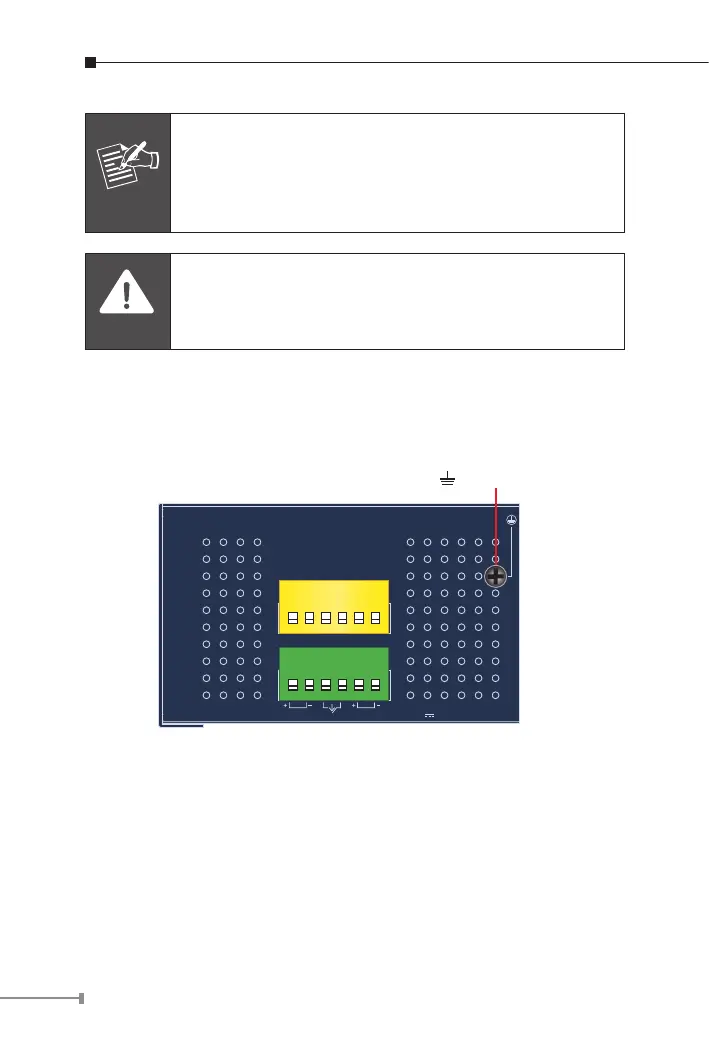

3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a
sudden lightning could cause fatal damage to the device.
PWR1
PWR2
Fault
DI1 DO0 DO1DI0 GNDGND
DC Input:
48-56V , 6A max.
Max. fault loading: 24V, 1A
1 2 3 4 5 6
1 2 3 4 5 6
Earth Ground
