Planet IGS-6325-4UP2X - Grounding the Device

7
1. The wire gauge for the terminal block should be in the range
from 12 to 24 AWG.
2.Please check the AWG Ampere specification before connecting
PLANETIndustrialManagedSwitch.
3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a sudden
lightning could cause fatal damage to the device.
Max. Fault Alarm Loading: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1
PWR2Alarm
DC Input: 9-48V , 4A max.
AC Input: 24V , 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Earth Ground

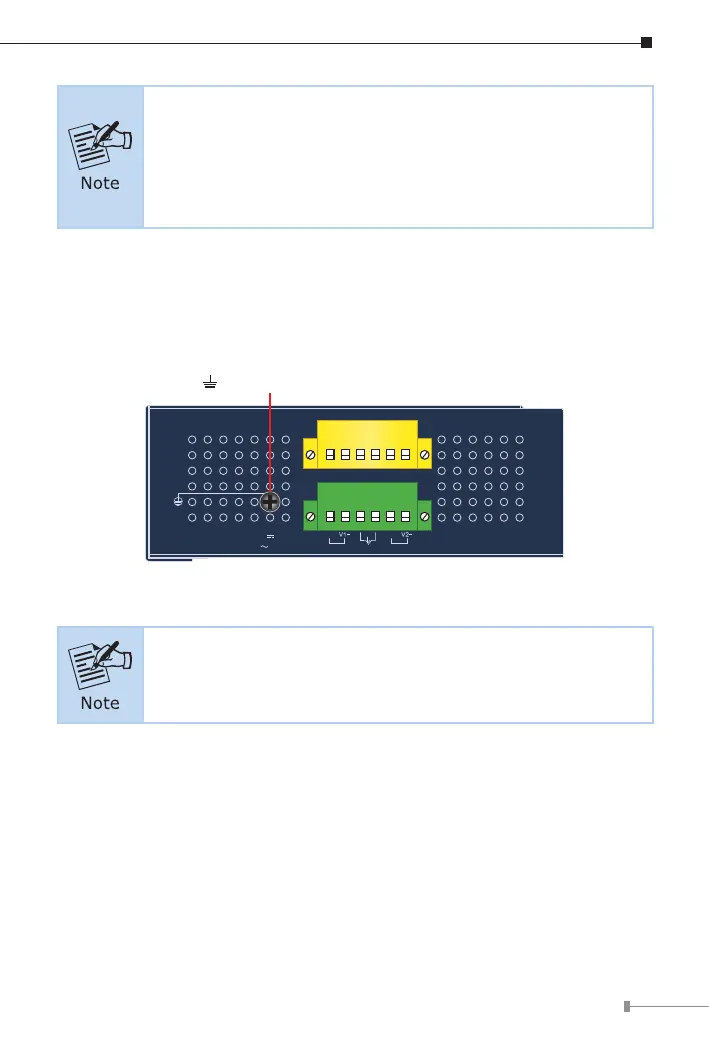

Figure 3-4: Grounding Method (applies to all three models)
LIGHTNINGDAMAGEISNOTCOVEREDUNDERWARRANTY.
