Planet ISW-808PT-M12 User Manual

10

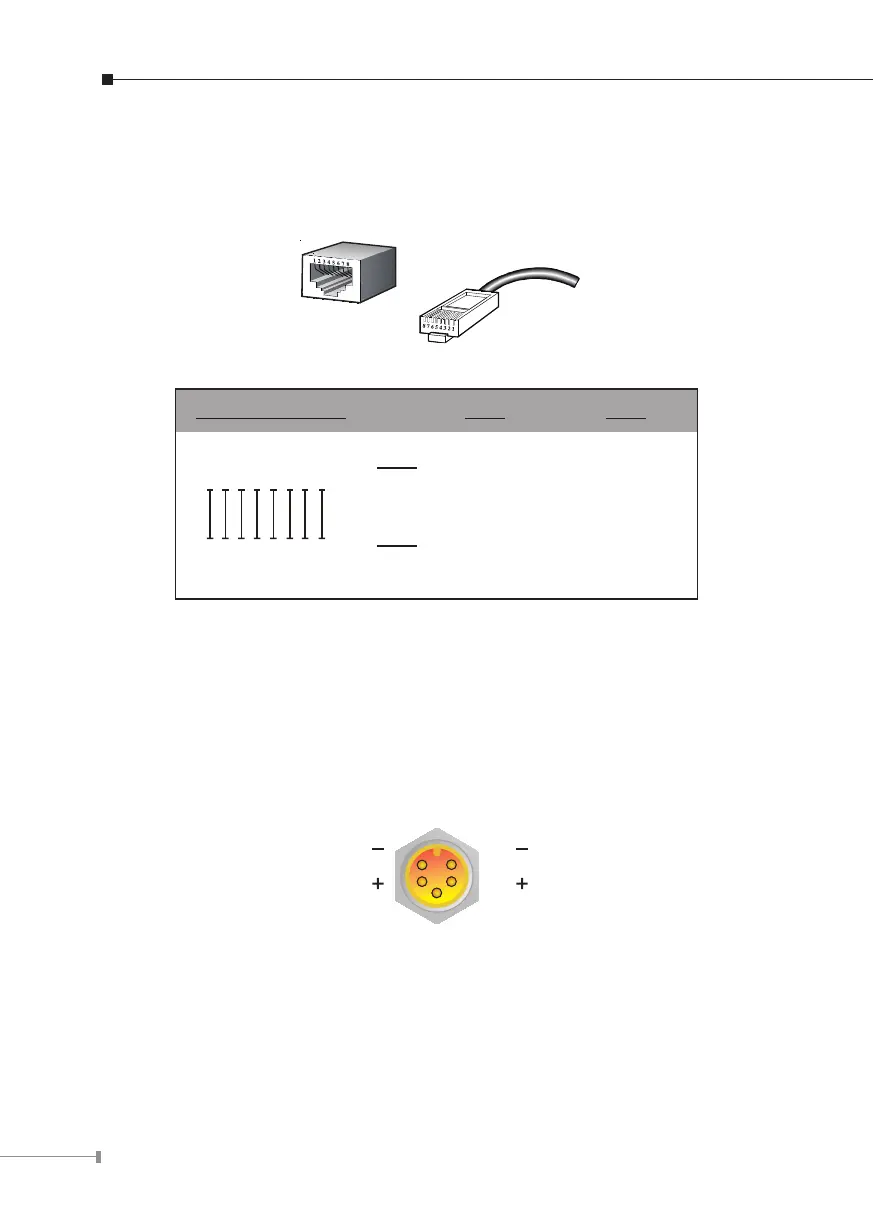

The standard RJ45 receptacle/connector
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The
following shows the pin allocation and colors of straight-through cable connection:
Straight-through Cable
SIDE 1
SIDE 1
SIDE 2
12345678
12345678
SIDE 2
1 = White/Orange
2 = Orange
3 = White/Green
4 = Blue
5 = White/Blue
6 = Green
7 = White/Brown
8 = Brown
1 = White/Orange
2 = Orange
3 = White/Green
4 = Blue
5 = White/Blue
6 = Green
7 = White/Brown
8 = Brown
Please make sure your waterproof RJ45 cables are with same pin assignment and
colors as the above picture before deploying the cables into your network.
2.5 M23 DC Power Connector Pin Assignment
The front panel of the Industrial M12 Ethernet Switch provides one M23 5-pin male
connector for dual DC power input.
GND
V2
V2
V1
V1
