Planet ISW-808PT-M12 User Manual

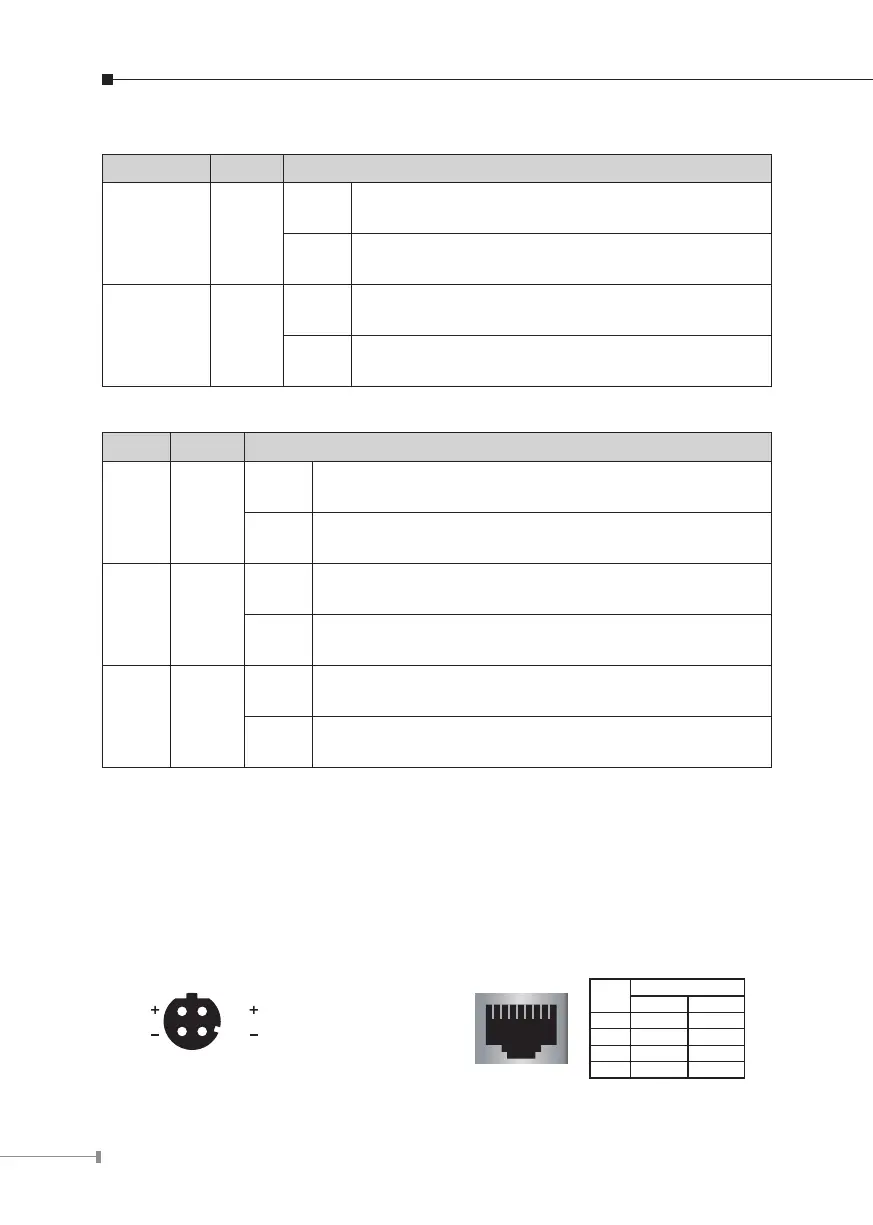

8
 Per 10/100BASE-TX PoE+ Port
LED Color Function
LNK/ACT Green
Lights
To indicate the port is running at 10/100Mbps
speed and successfully established.
Blinks
To indicate the switch is actively sending or
receiving data over that port.
PoE-in-Use Amber
Lights
To indicate the port is providing 45~55 V DC
in-line power.
O
To indicate the connected device is not a PoE
powered device (PD).
 PoE Power Usage (Unit: Watt)
LED Color Function
180W Amber
Lights
To indicate the system consumes reach 180-watt PoE
power budget.
Blinks
To indicates that the PoE usage is around 150W to
180W.
120W Amber
Lights
To indicate the system consumes over 120-watt PoE
power budget.
Blinks
To indicates that the PoE usage is around 90W to
120W.
60W Amber
Lights
To indicate the system consumes over 60-watt PoE
power budget.
Blinks
To indicates that the PoE usage is around 30W to
60W.
2.3 M12 10/100TX Connector Pin Assignment
The Industrial M12 Ethernet Switch front panel provides eight 10/100BASE-TX Fast
Ethernet ports in the form of M12 4-pin D-coded female connector. These ports
are designed for Ethernet equipment connection through Cat5/5e UTP cables. The
M12 input interface pinout is shown below:
TX
RX
RX
TX
Pinout 1: TX+
Pinout 2: RX+
Pinout 3: TX
-
Pinout 4: RX -
ISW-808PT-M12/ISW-808PT-M12A
1
4
2
3
RJ45 (8-Pin)
Pinouts for the RJ45 (8-Pin) Port
1 8
MDI MDI-X
Pin
1
2
3
6
Signal
TX+
TX
-
RX+
RX
-
RX+
RX
-
TX+
TX
-
4-pin M12 Female 10/100TX Connector Pin Assignment
