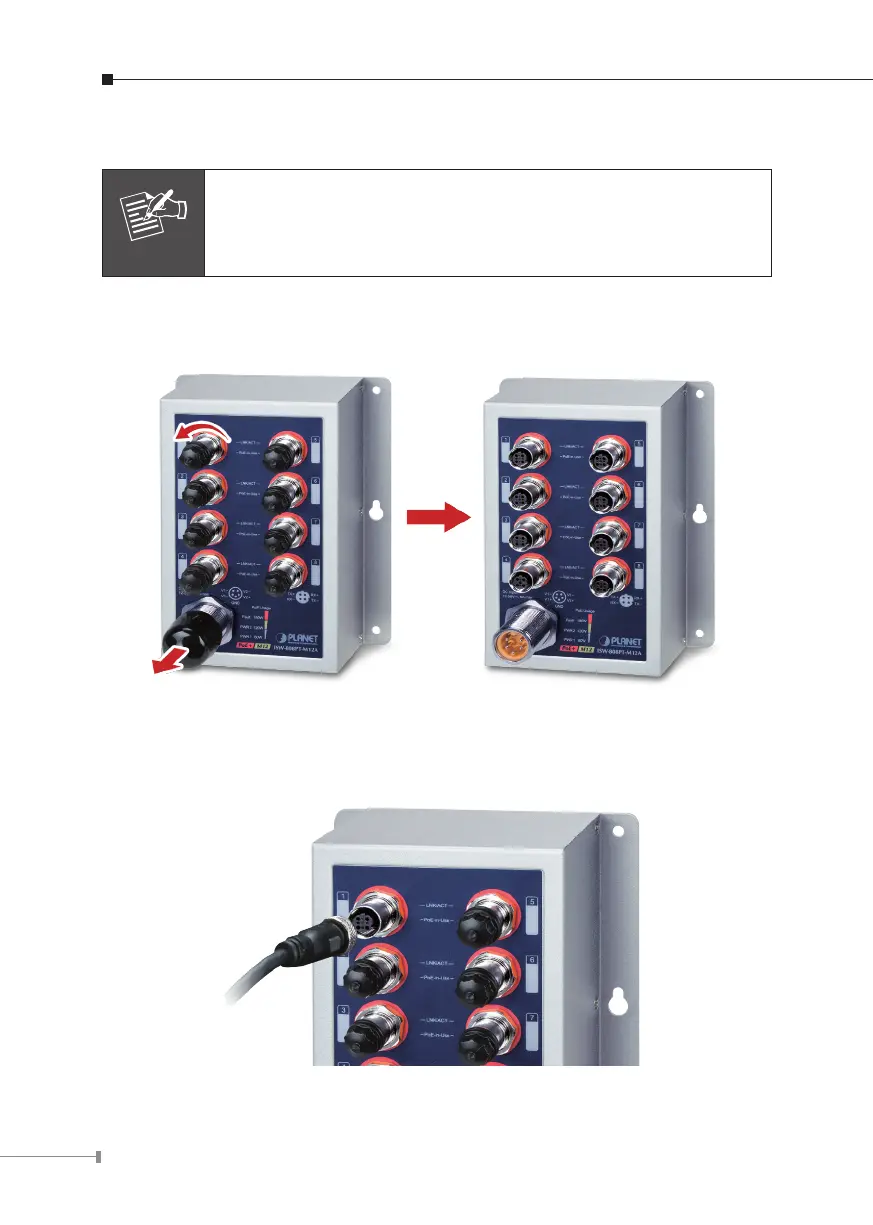

3. Connecting M12 Cable
Note
This following pictures show how to install the device.
Step 1: Turn counterclockwise to remove the waterproof screw nuts of an M12
connector and power input.
Step 2: Insert the M12 UTP male connector into the M12 female Ethernet port of
the Industrial M12 Ethernet Switch.
