13

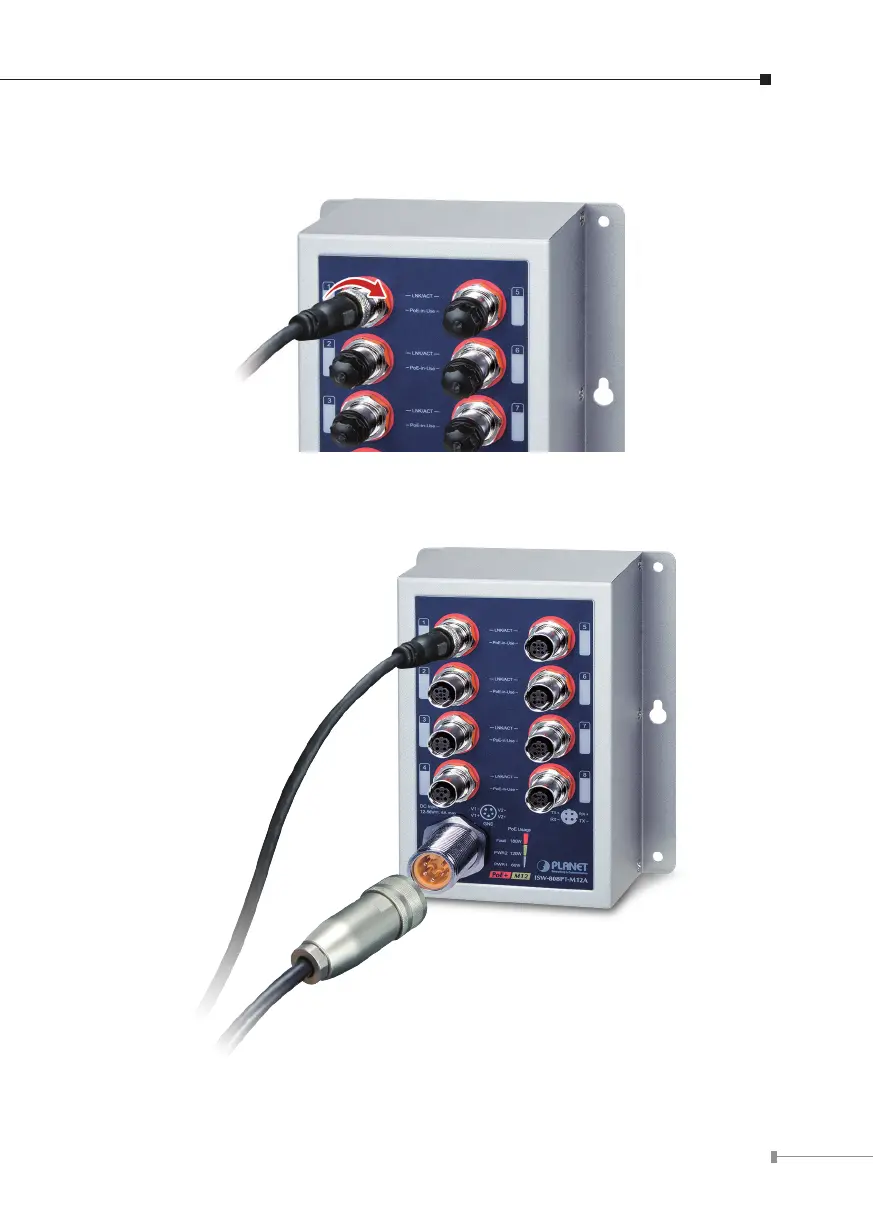

Step 3: Turn clockwise to tighten the screw nut of the M12 connector and make
sure the connection is tight.
Step 4: Insert the M23 power female connector into the M23 male port of the
power input.
