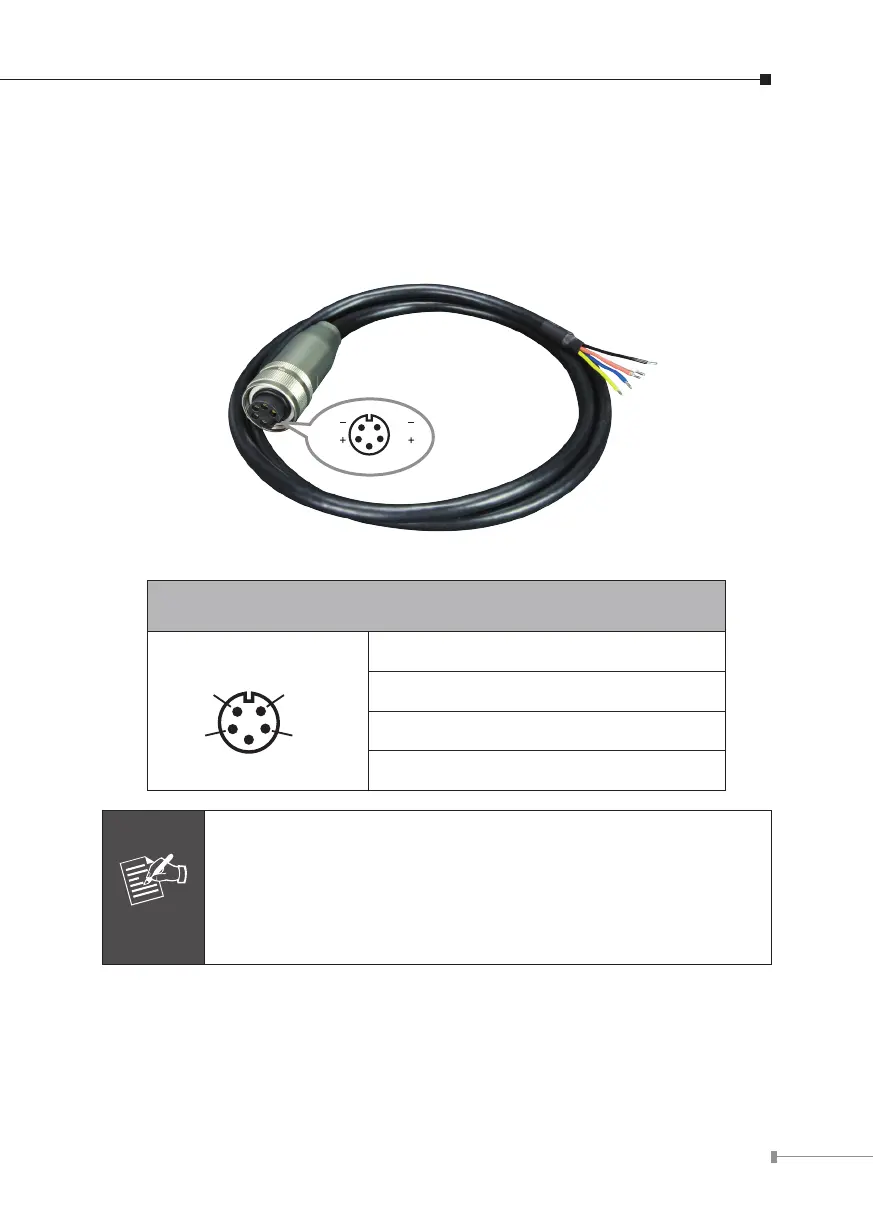

2.6 M23 DC Power Cable Wiring
Please use the power cable with the M23 5-pin female connector from the
Industrial M12 Ethernet Switch package for DC power input. The M23 DC power
cable pin assignment is shown below:
V2
V2
V1
V1
CB-M23FSF-120 M23 DC power cable pin assignment and wiring code
V2-
V2+
V1-
V1+
V1 positive (+) pin = white cable
V1 negative (-) pin = brown cable
V2 positive (+) pin = black cable
V2 negative (-) pin = yellow cable
Note
1. Make sure you connect the correct power pin to your DC power
source.
2. The wire gauge for the power cable should be in the range of 12
~ 24 AWG.
3. The DC power input range is 12 ~ 56V DC.
