Planet ISW-808PT-M12 - LED Indicators

7
M12 10/100TX
802.3at PoE+ Port
M23 Power
Input Connector
Power and Fault LEDs
Power Usage LEDs

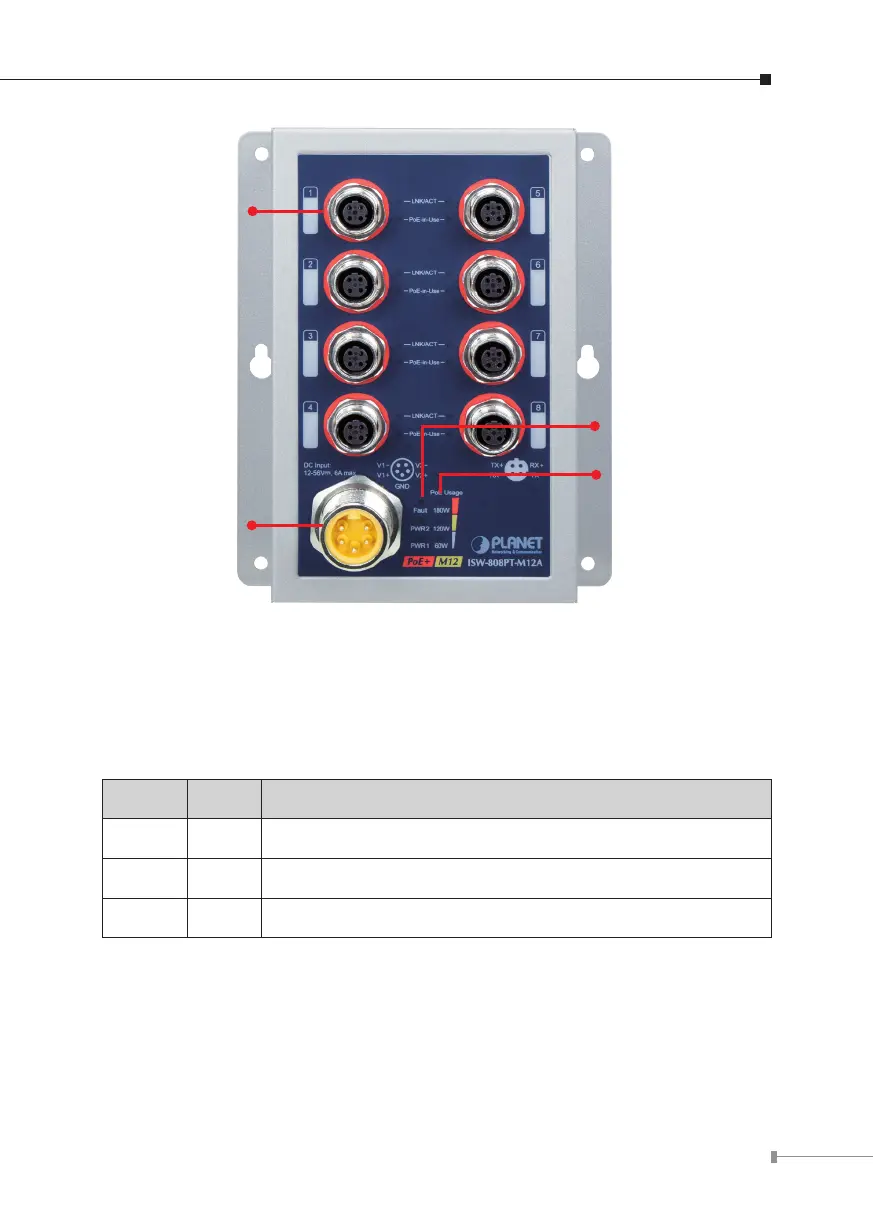

Figure 2-2: ISW-808PT-M12A Front Panel
2.2 LED Indicators
 System
LED Color Function
PWR 1 Green Lights to indicate DC power input 1 has power.
PWR 2 Green Lights to indicate DC power input 2 has power.
Fault Red Lights to indicate either power 1 or power 2 has no power.
