User Manual of WDAP-C3000AX, WDAP-3000AX, WDAP-W3000AX
- 47 -

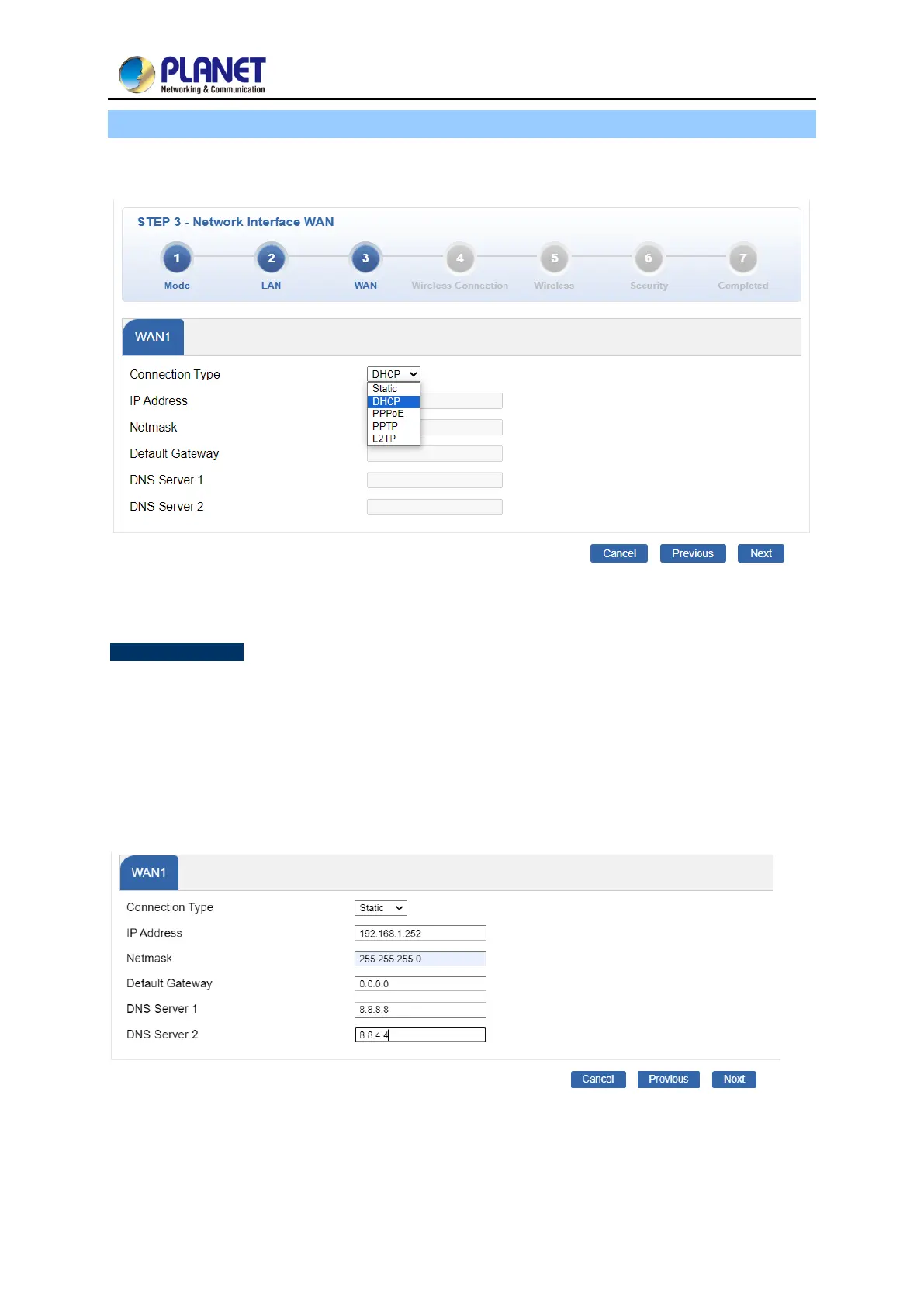

Step 3: WAN Interface
The router supports two access modes on the WAN side shown in Figure 4-9
Figure 4-9: Setup Wizard – WAN 1 Configuration
Mode 1 -- Static IP
Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will
need to enter the IP Address, Netmask, Default Gateway and DNS Server provided to you by your
ISP. Each IP address entered in the fields must be in the appropriate IP form, which are four octets
separated by a dot (x.x.x.x). The router will not accept the IP address if it is not in this format. The setup
is shown in Figure 4-10.
Figure 4-10: WAN Interface Setup – Static IP Setup
