8

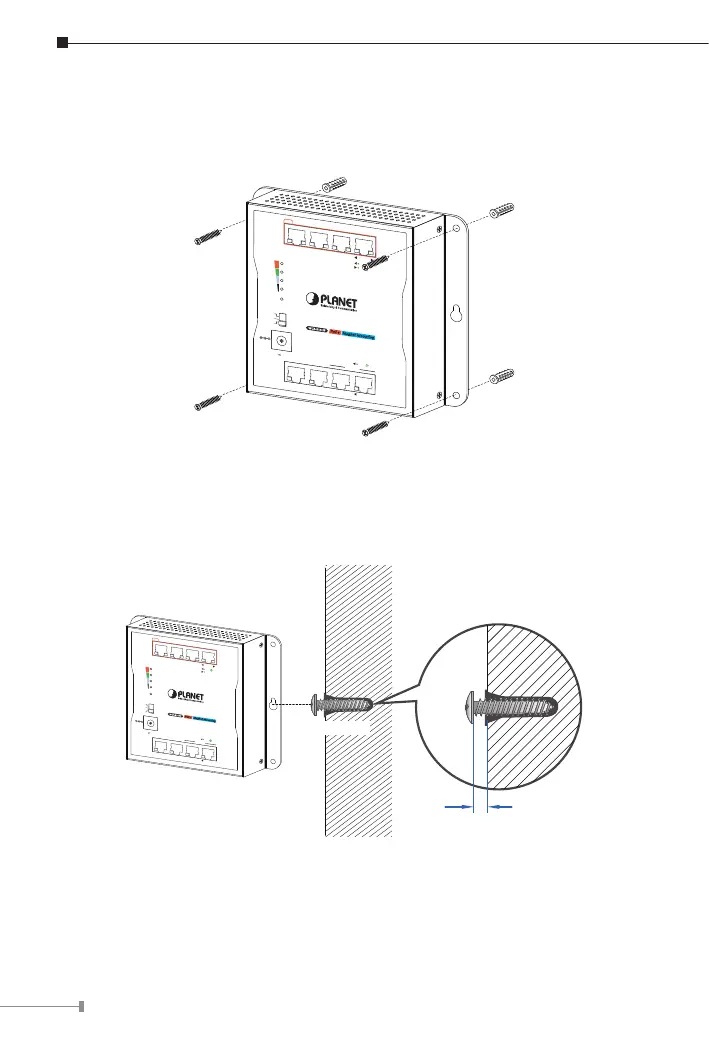

Step 2: Hammer the anchors provided into the four holes and use the four
screws to tightly x the Industrial PoE Extender onto the wall by
screwing them.
PoE+
3 421
7 865
Uplink
60W
PoE Usage
45W
30W
15W
PWR
ACTLNK
PoE-in-Use
ACTLNK
WGS-814HP
PoE+
Magnet Mounting
DC Input Range
48-56V
, 1.5A max.
Industrial 8-Port Gigabit
Ethernet Switch with 4-Port PoE+
Standard
VLAN
Extend
Step 3: Or the Industrial PoE Extender, shown in the picture below, can be
hung on the wall by screwing the two screws leaving a space of
2mm apart after the anchors are hammered in.
2mm
M4 Screw
PoE+
3 421
7 865
Uplink
60W
PoE Usage
45W
30W
15W
PWR
ACTLNK
PoE-in-Use
ACTLNK
WGS-814HP
PoE+
Magnet Mounting
DC Input Range
48-56V
, 1.5A max.
Industrial 8-Port Gigabit
Ethernet Switch with 4-Port PoE+
Standard
VLAN
Extend
