3. Installation
This section describes the functionalities of the Industrial PoE Extender’s
components and guides you to installing it on the wall-mount, DIN rail and
magnet Installation. Please read this chapter completely before continuing.
This following pictures show how to install the device. However,
the device in the picture is not the WGS-E304PT.
3.1 Wall-Mount Installation
To install the Industrial PoE Extender on the wall, simply follow the following
steps:

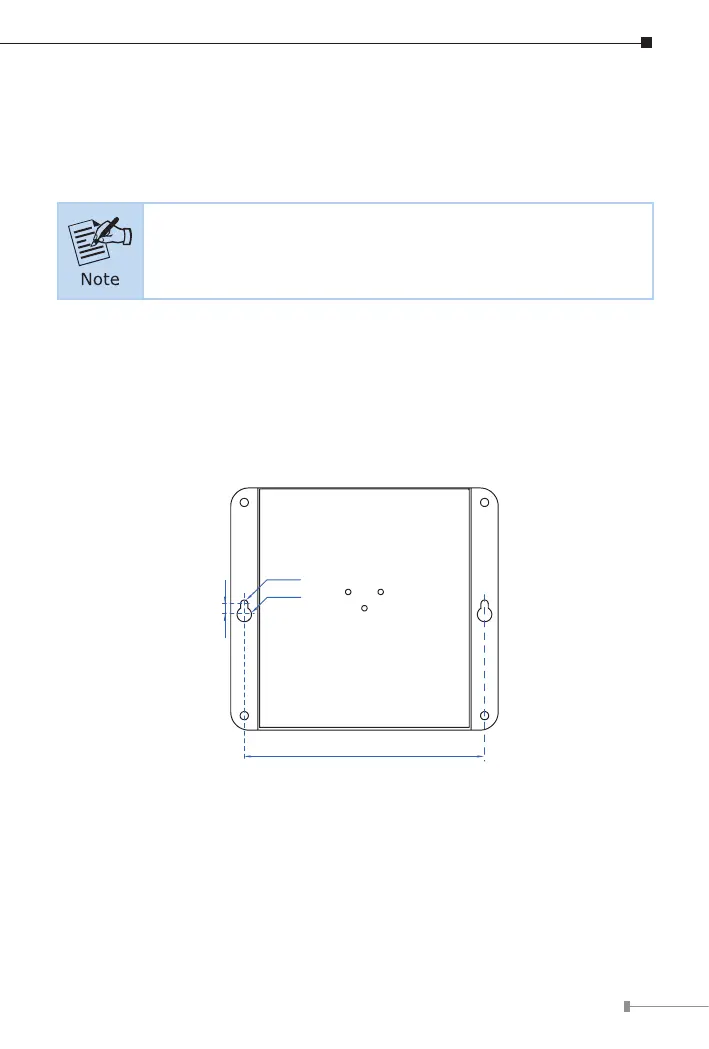

Step 1: Place the Industrial PoE Extender on the wall and mark the four
holes with a pencil.
133mm
Ø4mm
Ø8mm
6mm
