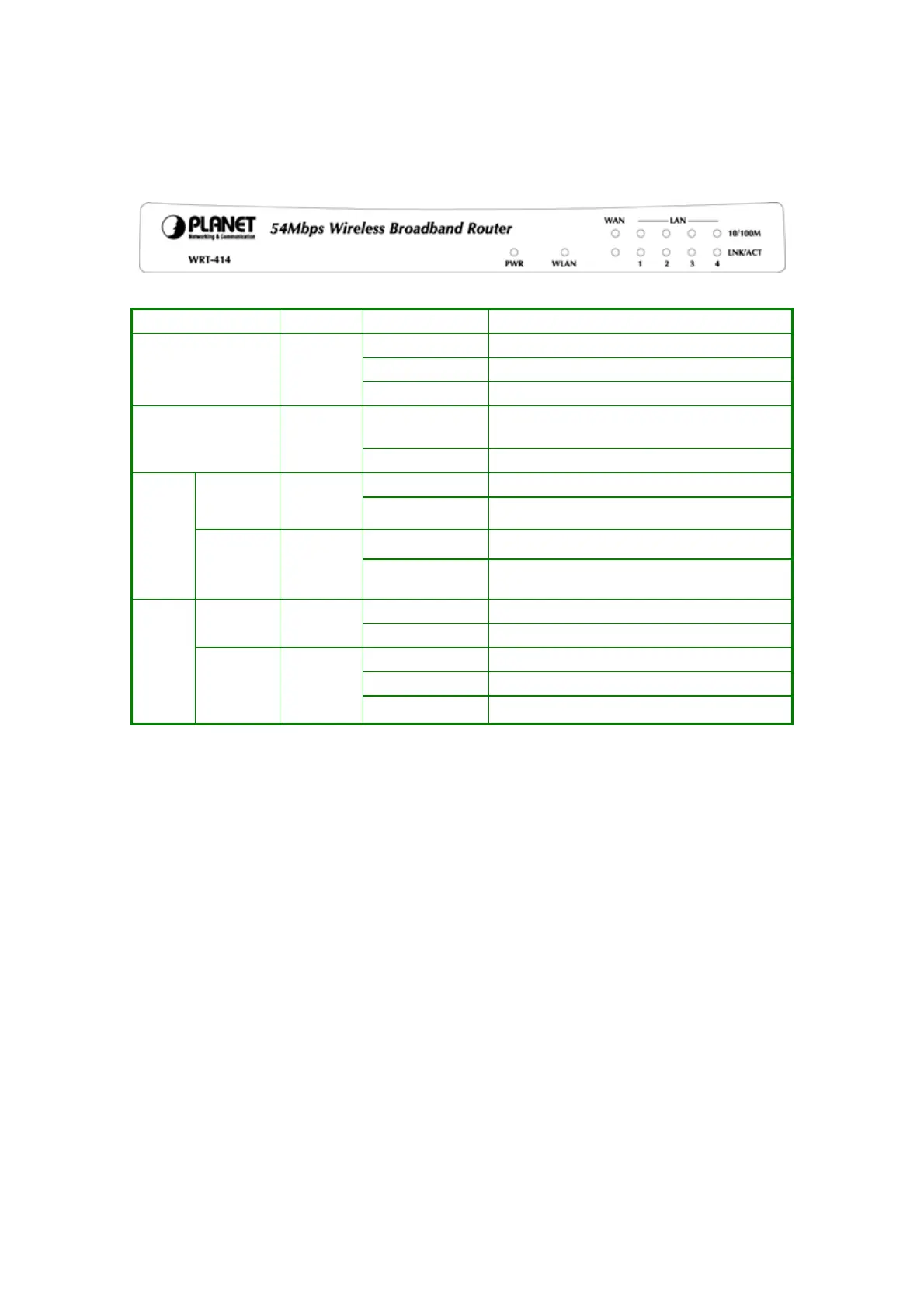

2.2 LED Indicators
LED Color STATE MEANING
On Device power on
Off Device power off
PWR Green
Blinking During boot up procedure.
Blinking
Transmitting or receiving data through the
Wireless LAN
WLAN Orange
Off Wireless LAN is no function
On WAN port is connected at 100Mbps
10/100M Green
Off WAN port is connected at 10Mbps
On Link is established
WAN
LNK/ACT Green
Blinking Packets are transmitting or receiving
On LAN is connected to 100Mbps device
10/100M Green
Off LAN is connected to 10Mbps device
On Link is established
Blinking Packets are transmitting or receiving
LAN
LNK/ACT Green
Off LAN port is not connected
- 4 -
