Planmeca ProMax Installation Instructions

1 Introduction
This document contains instructions for installing the ProTouch 5.0 display to
the Planmeca ProMax X-ray unit as a retrofit installation.
In addition to these instructions, you need the X-ray unit's technical manual
during the installation.
NOTE
Read these instruction carefully before installation.
CAUTION
Perform the installation exactly in the order given in these instructions.

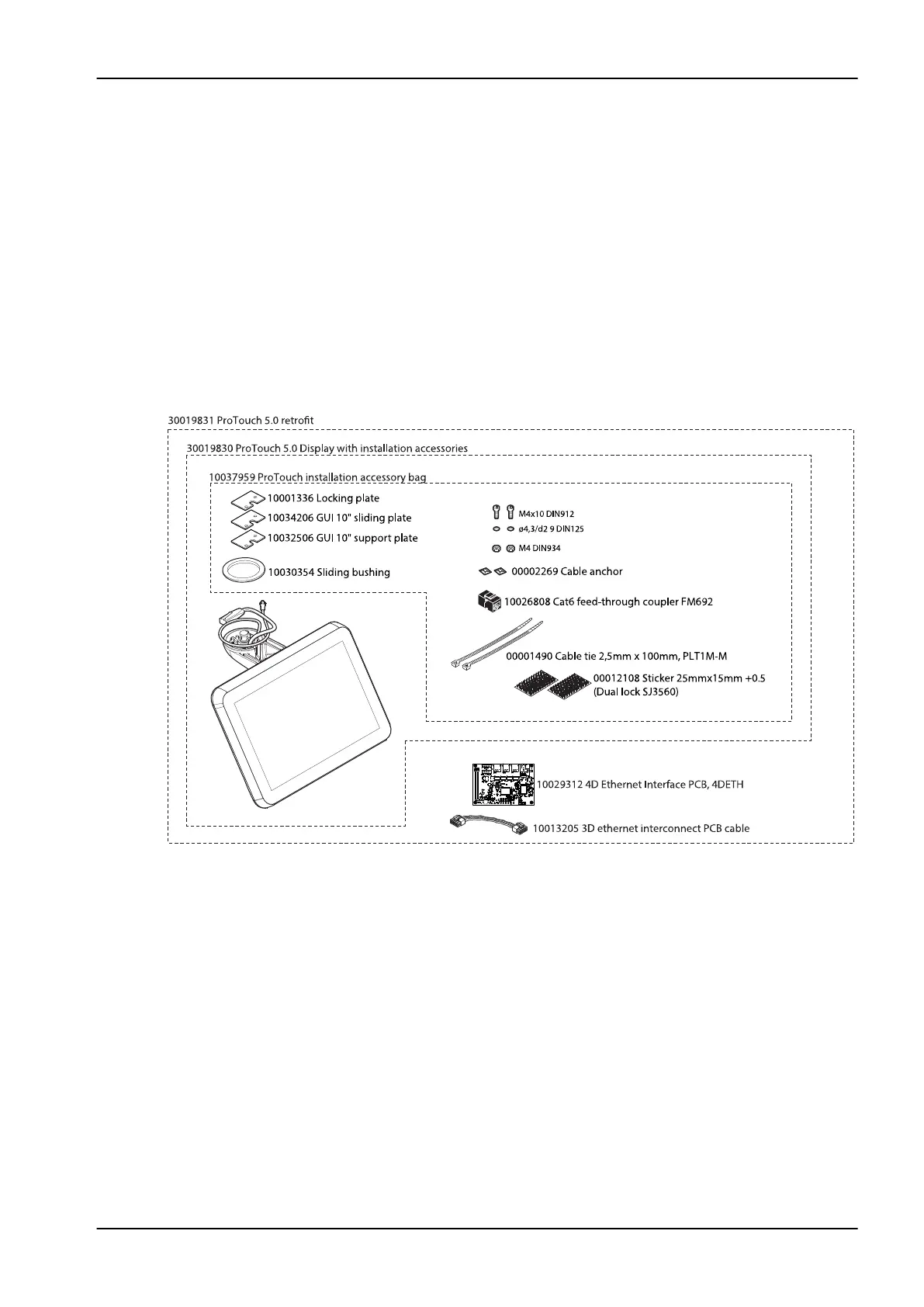

Retrofit kit contents
NOTE
For information about Planmeca ProMax ProTouch user interface, see
technical bulletin PX-147 at Planmeca dealer support.
1 Introduction
Installation manual Planmeca ProTouch installation manual 1
