Planmeca ProMax Installation Instructions

2 Replacing Ethernet PCB
NOTE
If the X-ray unit is equipped with 3D Ethernet PCB or ProMax Ethernet PCB,
the PCB must be replaced with 4D Ethernet PCB.
1. Switch off the X-ray unit.
2. Remove the column front cover plate according to the instructions given
in X-ray unit’s Technical manual.
3. Disconnect all the cables that are connected to the Ethernet PCB.

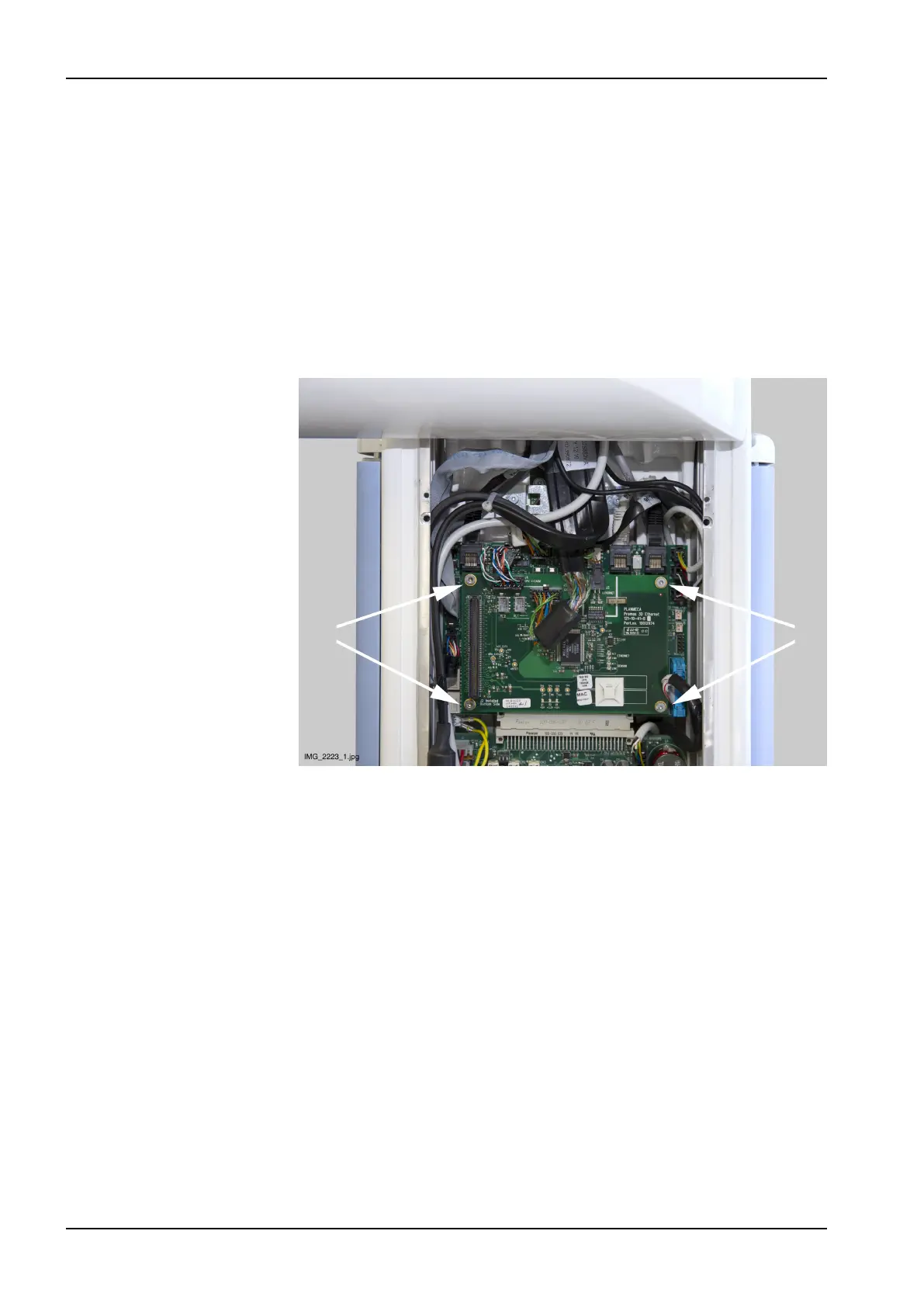

4. Detach the Ethernet PCB from the screws on every edge from the CPU
PCB.
5. Attach the 4D Ethernet PCB to its position.
6. Connect the cables.
NOTE
Do NOT move the GUI cable from the CPU PCB to the 4D Ethernet PCB
yet!
7. If the X-ray unit was equipped with ProMax Ethernet PCB the C-arm
main cable must be moved from the CPU PCB to the 4D Ethernet PCB
2 Replacing Ethernet PCB
2 Planmeca ProTouch installation manual Installation manual

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
