How you connect your Xbox 360's audio/video to your TV will generally be
the most important factor in how audio is connected to the mixer.
Use this setup if your TV or primary audio device has an optical port, and you have an optical
cable (not included in package, sold separately by other manufacturers). An optical cable is an
optional connection method that offers the highest performance audio possible with the mixer.
1
Attach a Toslink digital optical cable to the appropriate port on your Xbox 360 (Xbox 360 Slim
models or to the Microsoft AV Adapter with included optical audio port), HDTV, A/V Receiver, or
other audio device.
2
Plug the opposite end of the optical cable into the optical port on the rear of the mixer.
On your Xbox, go to Settings > System > Console Settings > Audio. Then select Digital Output >
Digital Stereo.
3
Make sure the boom microphone is attached properly to the headset. Insert the 3.5mm plug
into the headset jack on the front of the mixer located under the RIG logo tab, on the left side.
4
Insert the included Xbox Live chat cable into the 2.5mm jack (smaller of the two) located to the
right of the headset jack on front of the mixer. Insert the other end into your Xbox game
controller. For best performance, use the connector with the 90 degree angled plug attached to
the Xbox 360 controller and the straight plug connected to the mixer.
5
Find a good balance of game and voice audio by adjusting the Game/chat sound balancer on the
right side of the mixer (over the orange LEDs). Remember that the 3 o'clock position will enable
equal volume of both game and voice audio signal. Sliding the control upward makes game
sound louder and voice (game chat) quieter. Sliding the control downward increases voice (game
chat) while making game audio quieter.

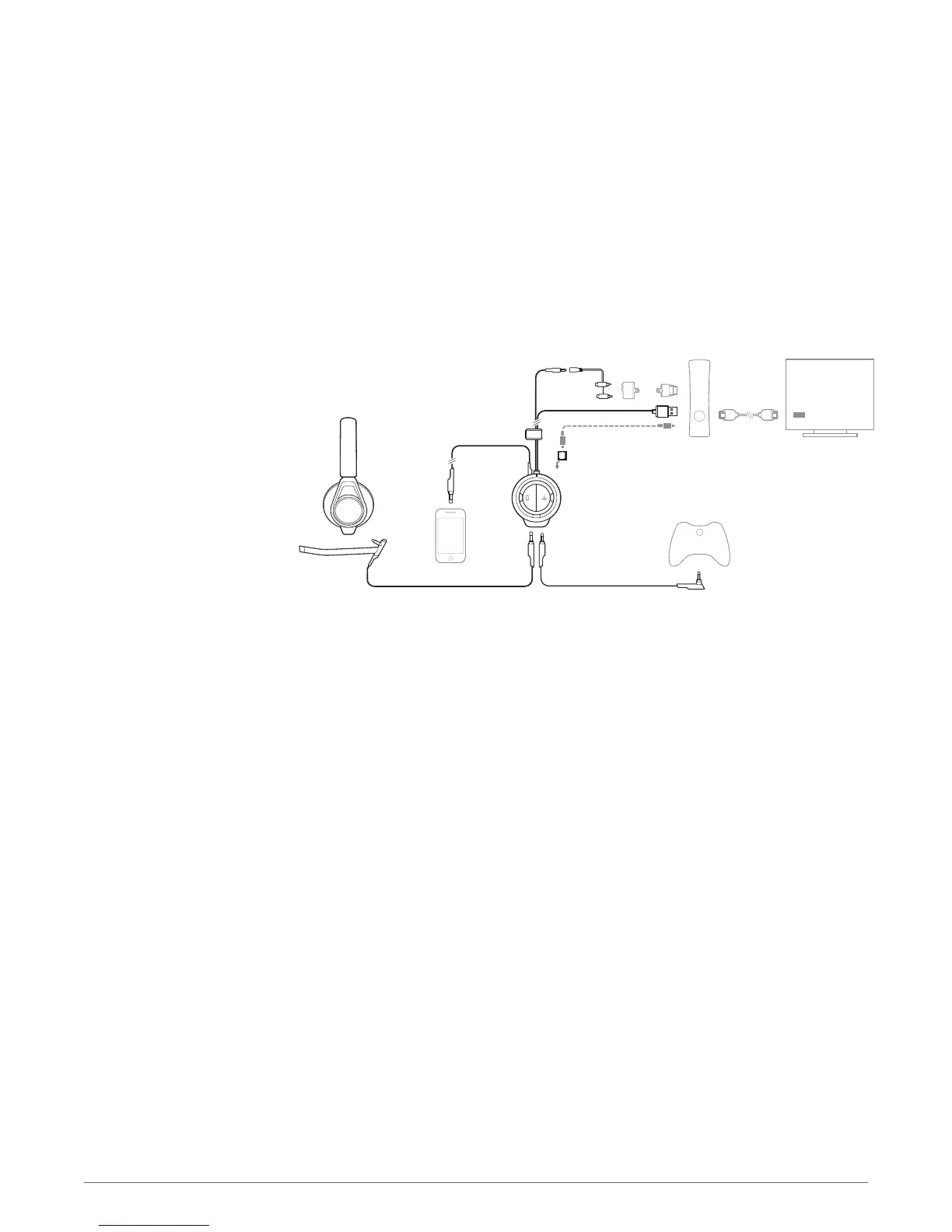

Xbox 360 setup
Xbox 360 optical cable
setup
