F200 and F300 User Manual | 5
Upper Handle
Lower Handle
Grooved Rod
Electronic Counter
Slide Tube
Rising Plate
1 - Assembling the Platemeter
Your Platemeter will come pre-assembled and only requires
two steps to be ready for use:
1. Attach the lower handle to the grooved rod by screwing
the two parts together.
2. Attach the plastic plate to the bottom of the slide tube
by screwing to the thread at the base of the slide tube.
Note: Under no circumstances should you apply any type of oil, or
lubrication to the platemeter. It is a dry bearing system and any
lubricant may damage the platemeter and may void your warranty.

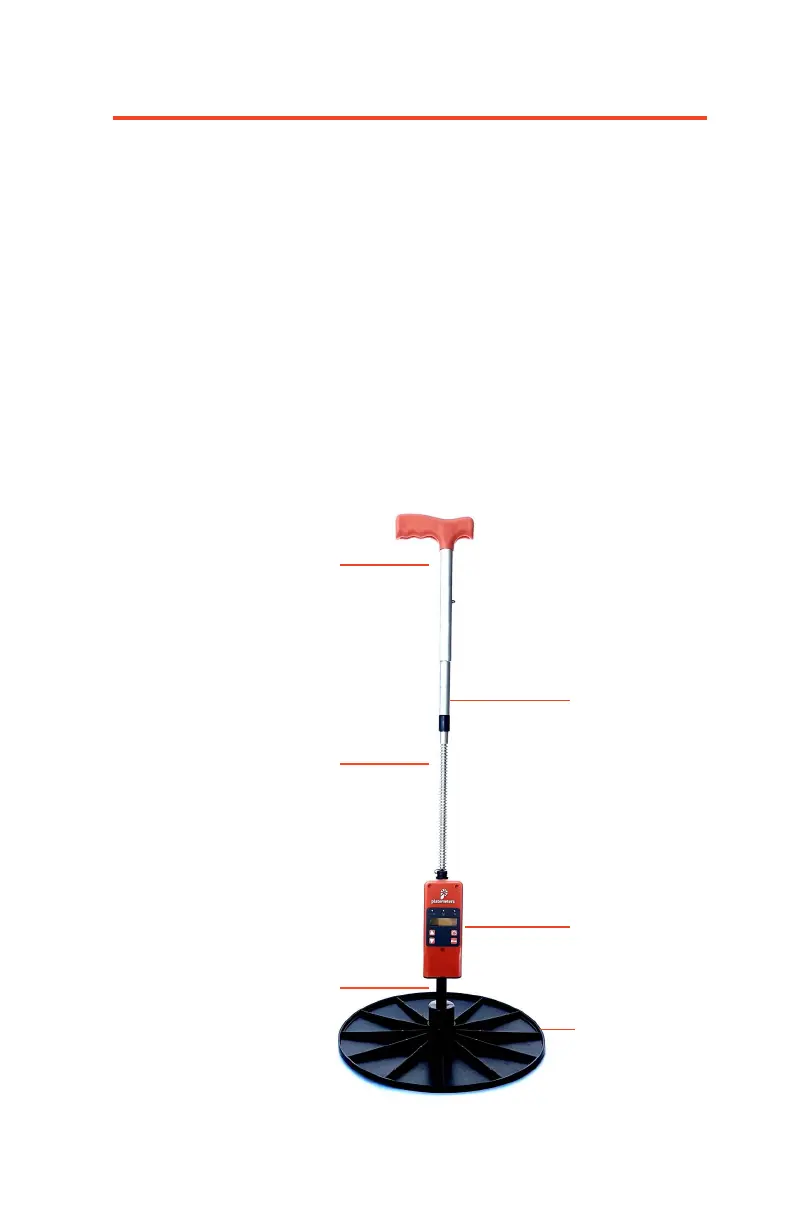

1.1 Your Platemeter
