Plockmatic BM 61 - Infeed Section, Collator Side

T10165 OPERATOR MANUAL BM 61
13
Positioning holes, small paper width (Used for A4/8”
1
/
2
paper widths or sizes
nearby)
Positioning holes, large paper width (Used for A3/11” paper widths or sizes nearby)
Positioning mark (green) (Shall correspond to the green mark on the
Collator)
Paper stop crank (Used for adjustment to correct paper length)
Rear jogger latch (Used to lower the rear jogger and enable
OFF-line operation)
Rear jogger adjustment latch (Used to position the rear jogger to the paper
length)
Receptacle, connection cable (The connection cable from the Collator
connects here)
Knob, adjustment for odd paper size (By loosening the knob the Docking Bracket
can be individually positioned for odd paper
sizes)
Docking Bracket
1.
2.
3.
4.
5.
6.
7.
8.
9.
1 2 3
4567
8
9

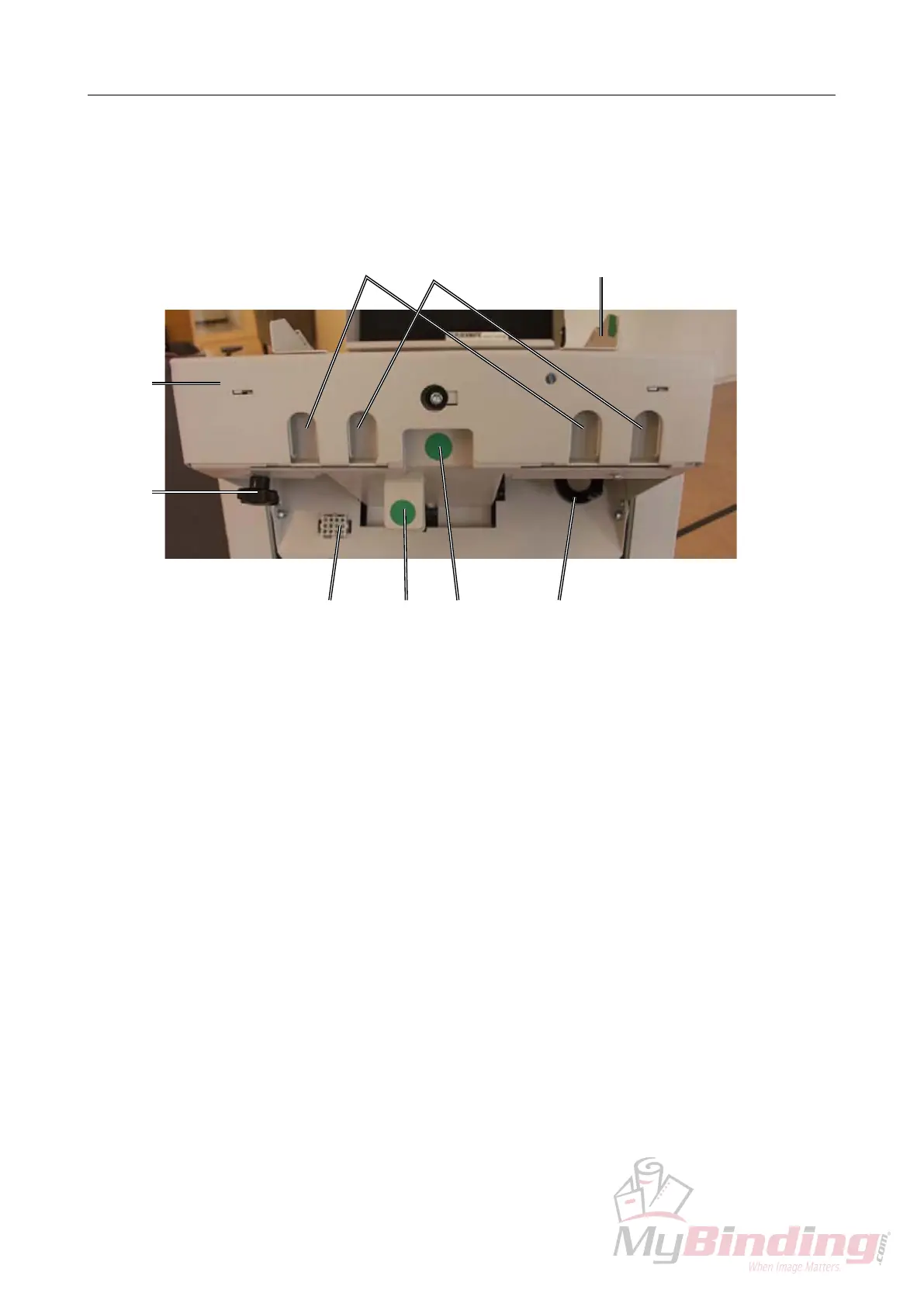

3.3 Infeed section, collator side
