ELECTRICAL
10.4
It will automatically turn back on when it has cooled.

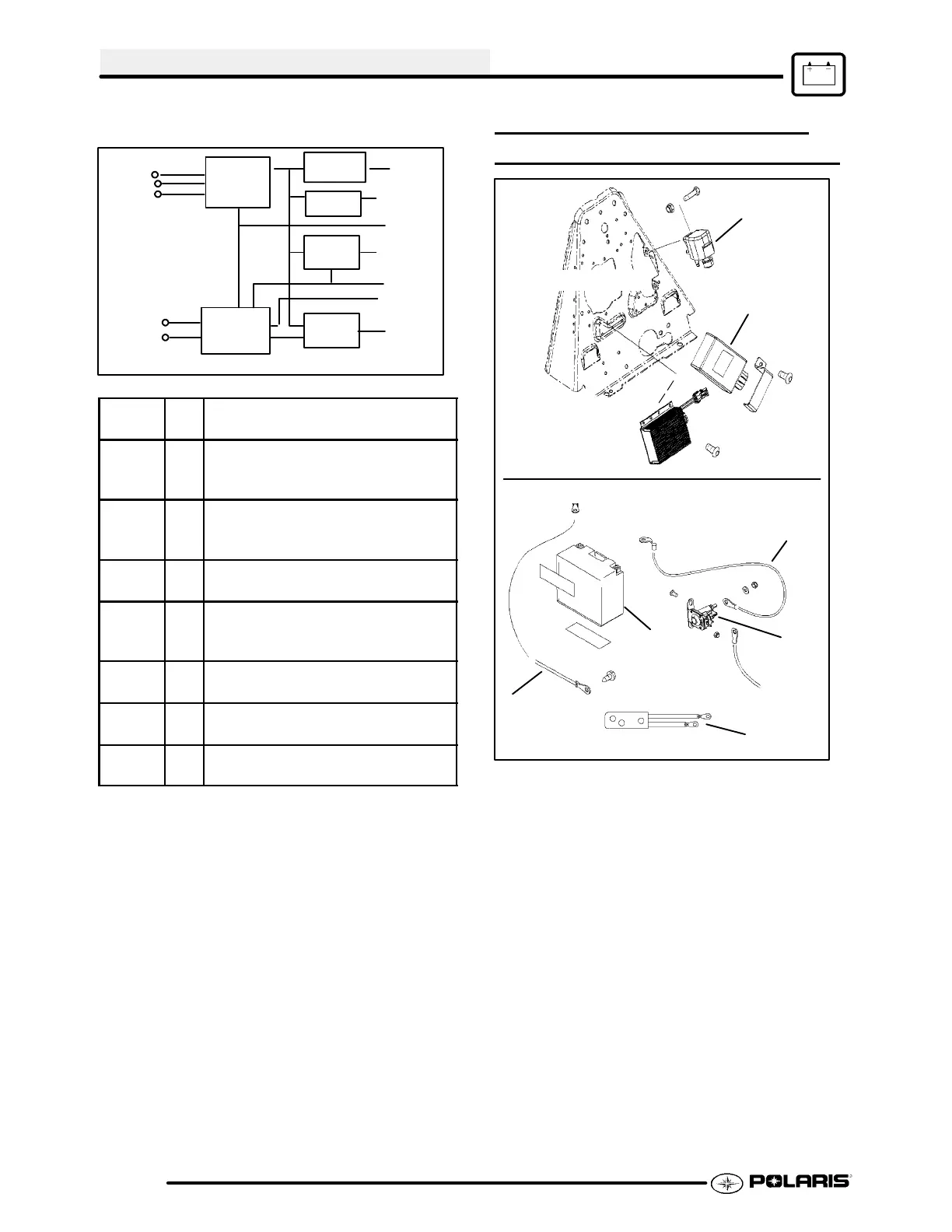

Alternator
Input
3 Phase
Regulator
IPS
IPS
IPS
Engine
Tem p
Controller
Thermistor
Fan
Hot Lamp
Run
ACC_PWR
Ground
BAT_PROT
BAT+
Rev. BAT
Protect
Wire
Color
Pin Description
Orange A
and
B
BAT_PROT -- Protected battery
output used to power the headlight
and instrument cluster.
Brown C
and
H
GND -- Battery Negative
Blue/
White
D HOT_LAMP -- Engine hot signal.
Provides a ground path for a lamp.
Red E
and
F
BAT+ -- Positive side of battery.
Both pins should be used to carry
current.
Red /
White
G Enables ACC_PWR, FAN, Hot
Lamp when on.
Orange
/Black
J Power to the fan.
Orange
/White
K ACC_PWR -- This signal provides
power to the accessories.
IGNITION SYSTEM/ BASIC
ELECTRICAL
COMPONENTS
CDI Box
Ignition Coil
Bulkhead of ATV
Starter
Solenoid
Battery
Winch Cables
Battery to
Solenoid Cable
Negative
Cable
Control Module
(Sure Power Box)
