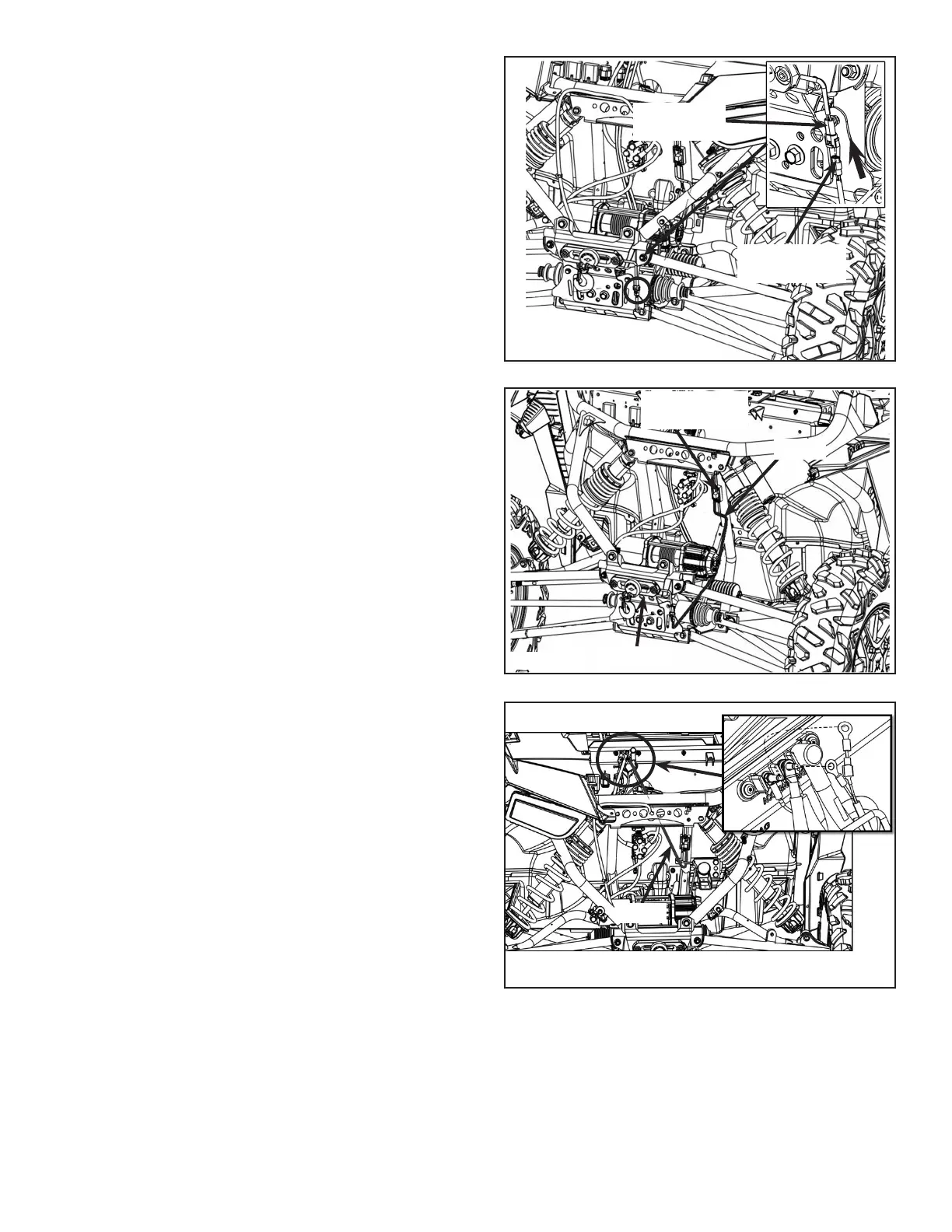

Figure 28
23. Route the wire from fairlead to the auto-stop control
unit. Figure 27.
NOTE: Use panduit straps to secure the cable from
hot or moving parts.
24. Route the cable (highlighted) from auto-stop control
unit to the bus bar. Figure 28.
NOTE: Use red ring terminal adapter in part
number 2879148 and connect it to terminal to acc
location on bus bar. Install the black ring terminal to
the negative location on the buss bar.
Figure 27
22. Connect the connector from fairlead to auto stop
control unit connector. Figure 26.
Figure 26
Cable
Auto-stop
Control Unit
Fairlead
Control Unit
Connector
Fairlead
Connector
For 4500 Winch
Cable
