Polaris 3500 User Manual

-8-

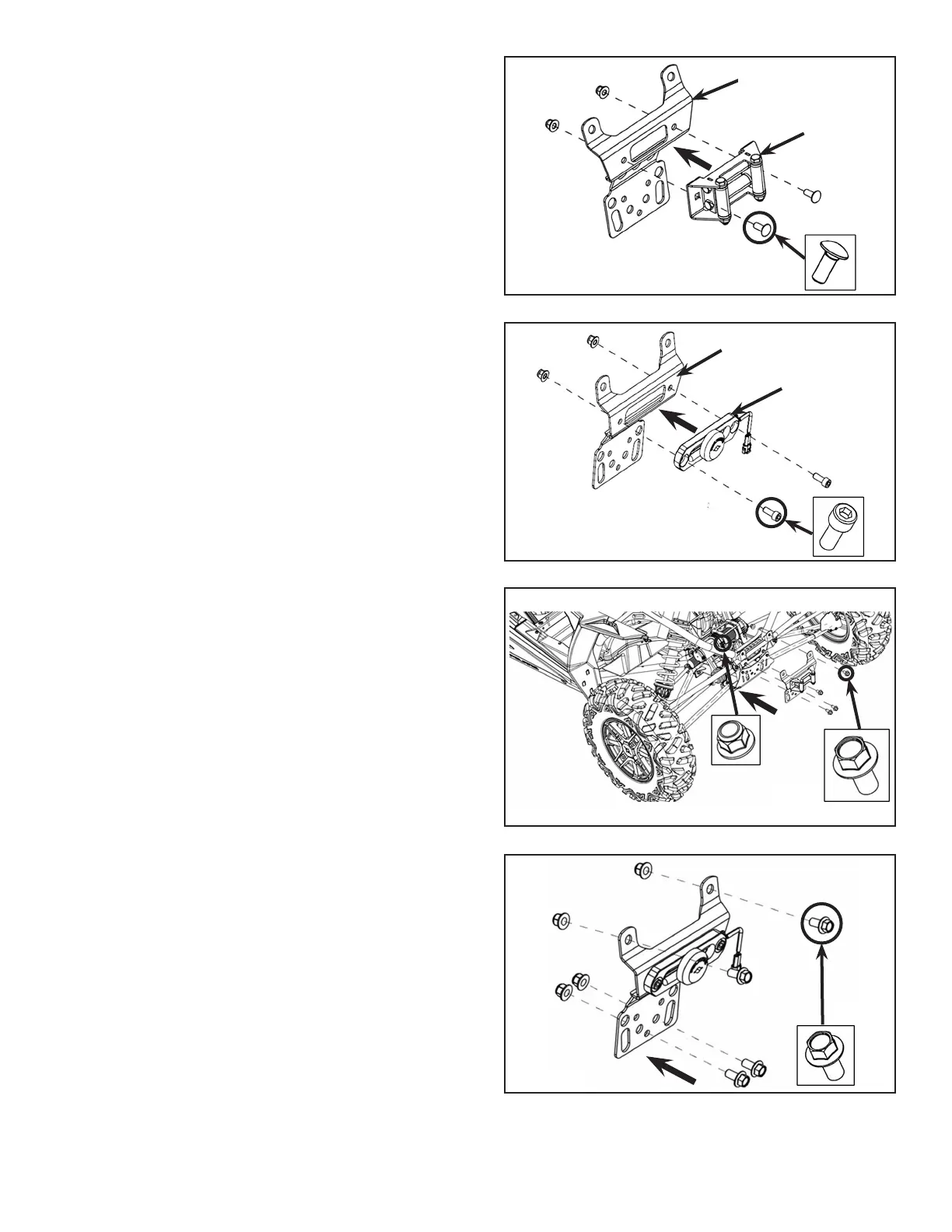

13. Front Plate Bracket installation:
a) For 3500 Winch: Install the front plate bracket
(PN 5257963) with roller fair lead (PN 2411848) as
subassembly on the vehicle with the four bolts
(PN 7519072) and nuts (PN 7547441).
Figure 14.
b) For 4500 Winch: Install the front plate bracket
(PN 5258106) with fair lead (PN 2879148) as
subassembly on the vehicle with the four bolts
(PN 7519072) and nuts (PN 7547441).
Figure 15.
Figure 14
Figure 15
12. Lead mounting:
a) For 3500 Winch: Mount the roller fair lead
(PN 2411848) onto the front plate bracket
(PN 5257963) with two screws (PN 7519372) and
nuts (PN 7547423). Figure 12.
b) For 4500 Winch: Mount the fair lead (PN 2879148)
onto the front plate bracket (PN 5258106) with the
two screws (PN 7517358) and nuts
(PN 7547423). Figure 13.
Figure 12
Figure 13
Fair Lead
Front Plate Bracket
Front Plate
Bracket
Roller
Fair Lead
Screw
Screw
Bolt
Bolt
