Polaris 3500 - Winch Assembly and Cable Connection

-7-

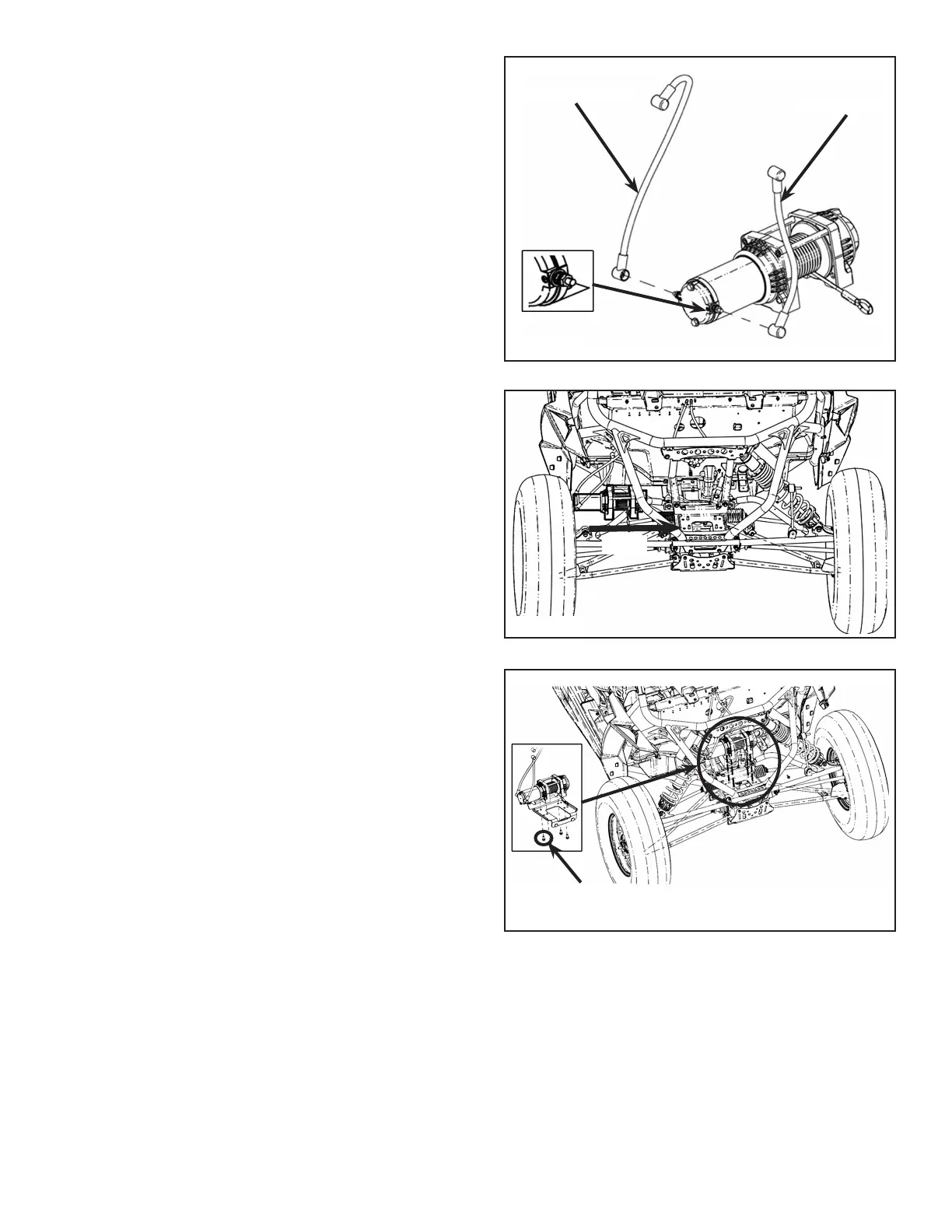

9. Connect the wires to the winch before installing it
onto the vehicle. Figure 9.
NOTE: Connect blue wire to the blue terminal and
yellow wire to the yellow terminal (color coding is
already provided on winch). Figure 9.
Figure 9
Figure 11
10. Slide winch (PN 2204688 and PN 2204855) from
left to right direction on the plate. Figure 10.
11. Mount and x the winch (PN 2204688 and
PN 2204855) onto the plate with four screws
(PN 7519133). Figure 11.
Figure 10
Slide
Blue Wire
Yellow Wire
Screw
