Polaris 3500 - Front Fascia and Winch Plate Mounting

-6-

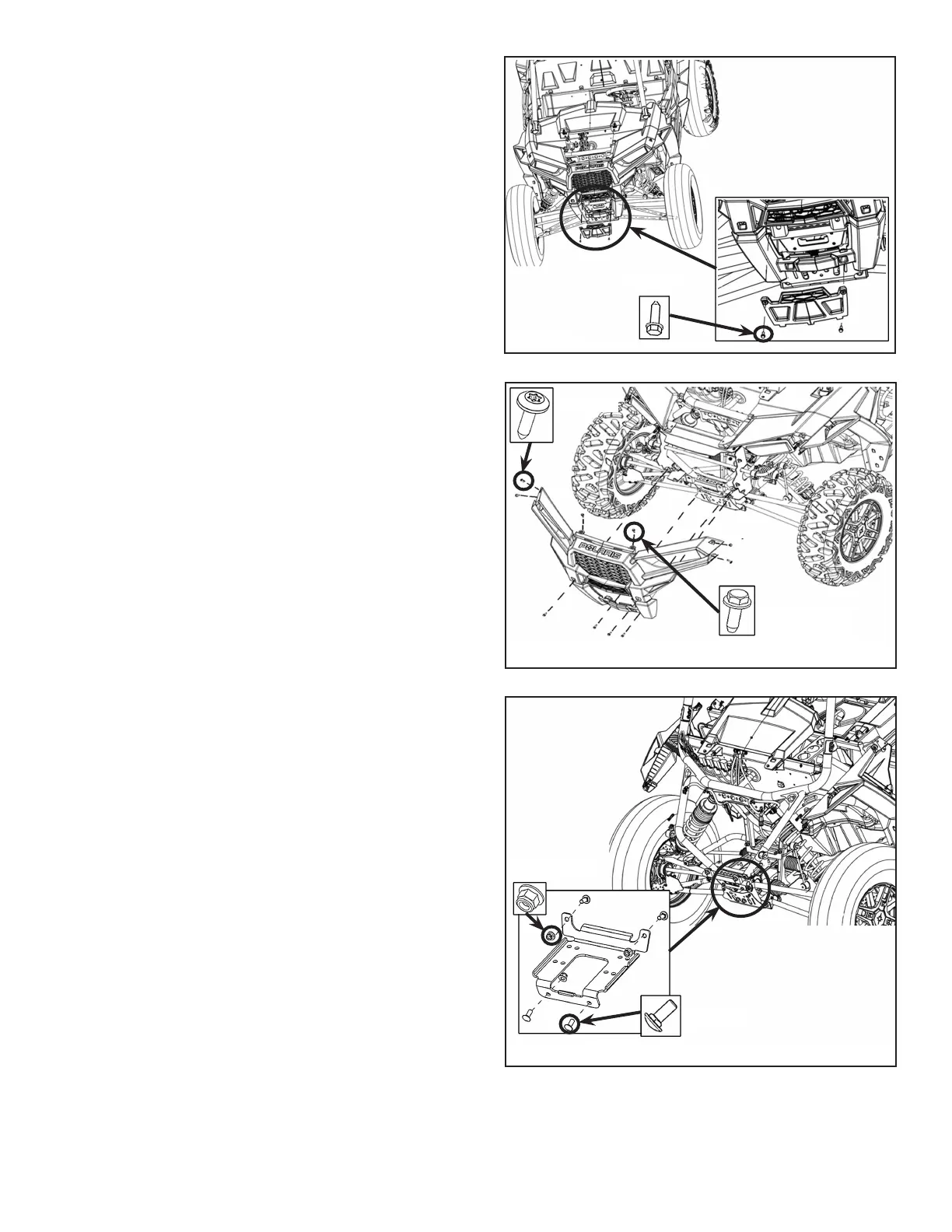

7. Take off the front fascia by removing six hexagonal
screws (PN 7518529) and four screws
(PN 7519650). Figure 7.
8. Mount the winch plate onto the vehicle with four
screws (PN 7519372) and lock nuts (PN 7547423).
Figure 8.
Figure 7
6. Detach the plastic plate by removing two screws
(PN 7518980). Figure 6.
Figure 6
Hexagonal
Screw
Screw
Lock Nut
Screw
Screw
Figure 8
