Polaris 3500 - Center Console and Initial Wiring Route

-5-

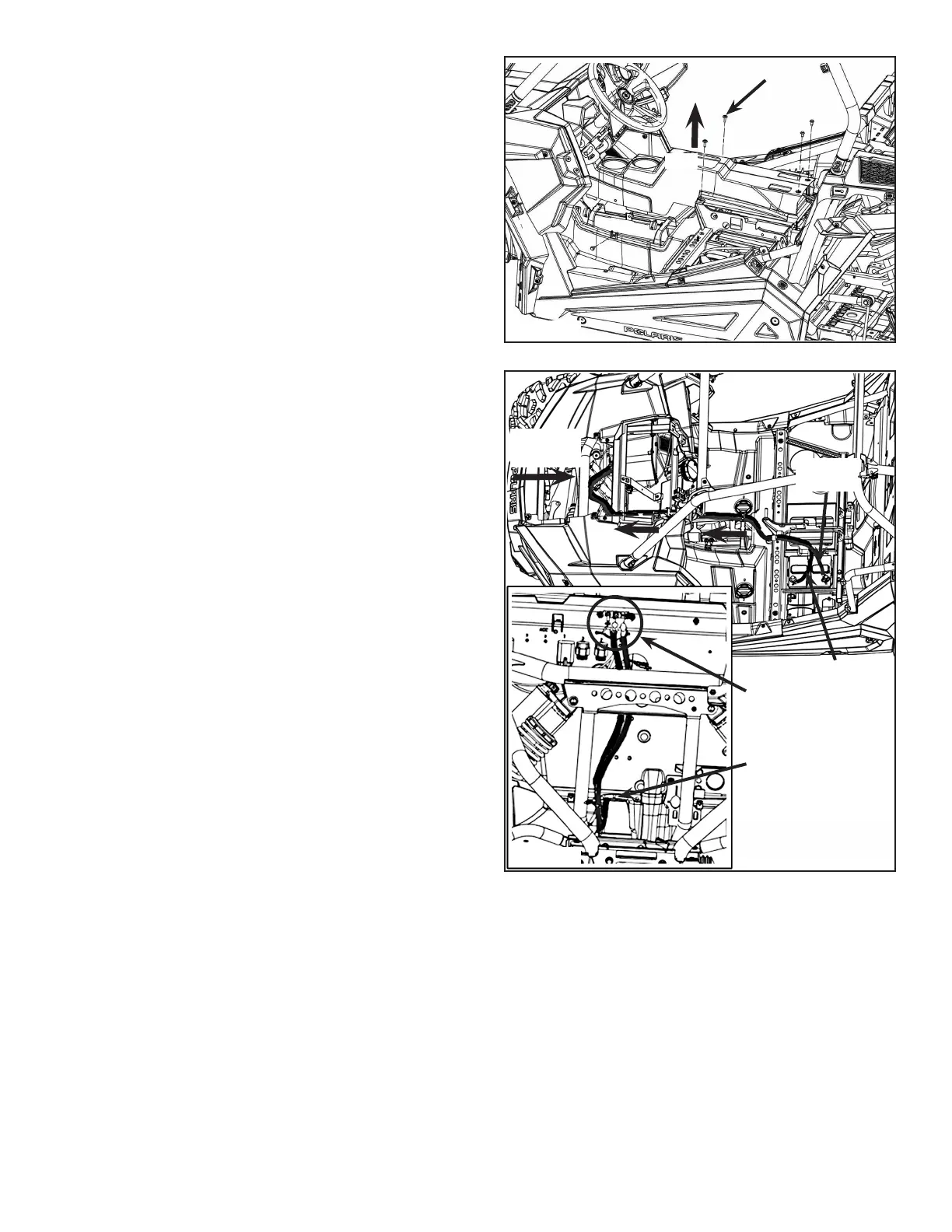

4. After removing shift lever cap and shift handle, take
off the center console by removing the two screws
(PN 7519650) and the four tuff lock rivets
(PN 7661855). Figure 4.
5. Route the cable (PN 4014577) having red and black
wires from bus bar to the battery.
Clip the harness to specied locations.Figure 5.
NOTE: The red and black wires are supplied with
the kit.
IMPORTANT: Do not connect the wire to the battery
terminal at this step.
Screw
Lift
Figure 4
Bus Bar
Figure 5
Vehicle Front
Vehicle
Front
Black
Cable
Firewall
Red
Cable
