29. Attach socket (PN 4014228) onto the din box with
two bolts (PN 7518980) and two nuts
(PN 7547427), at specied position.
30. Install the remote with the socket which is attached
to the din box. Figure 33.
31. Connect the negative and positive cable to the
battery which was disconnected in Step 1.
32. Attach the front fascia, center hood, center console,
shift lever housing with cap and nally install the
seat to its position which were disconnected in
Steps 7, 2, 4, 3 and 1 respectively.

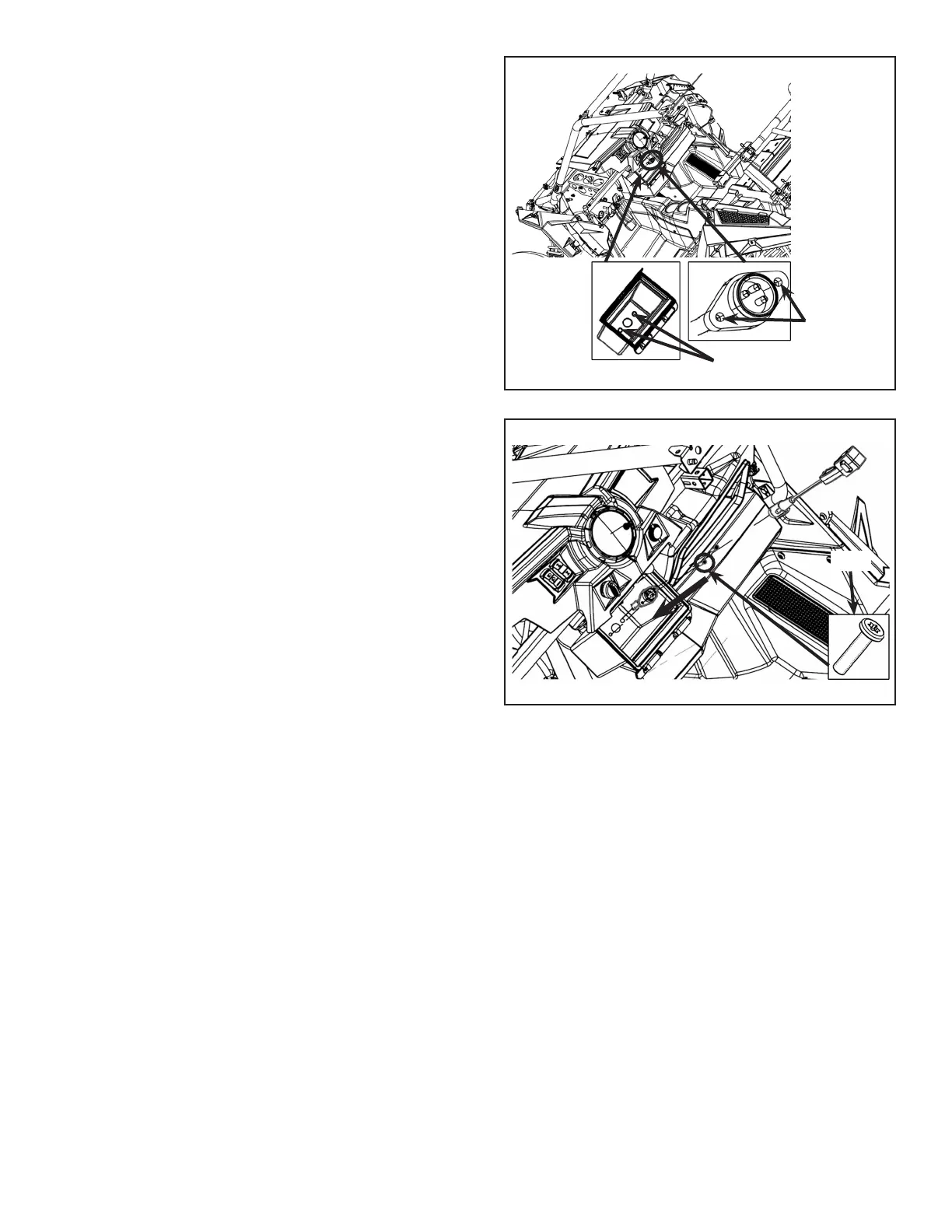

Figure 33
28. Drill the mounting holes to the specied location
around the cut out of the socket on the back of din
box. Figure 32.
NOTE: Use 1/4” drill bit.
Figure 32
Hole in din box
Mounting
hole in
socket
Bolt
