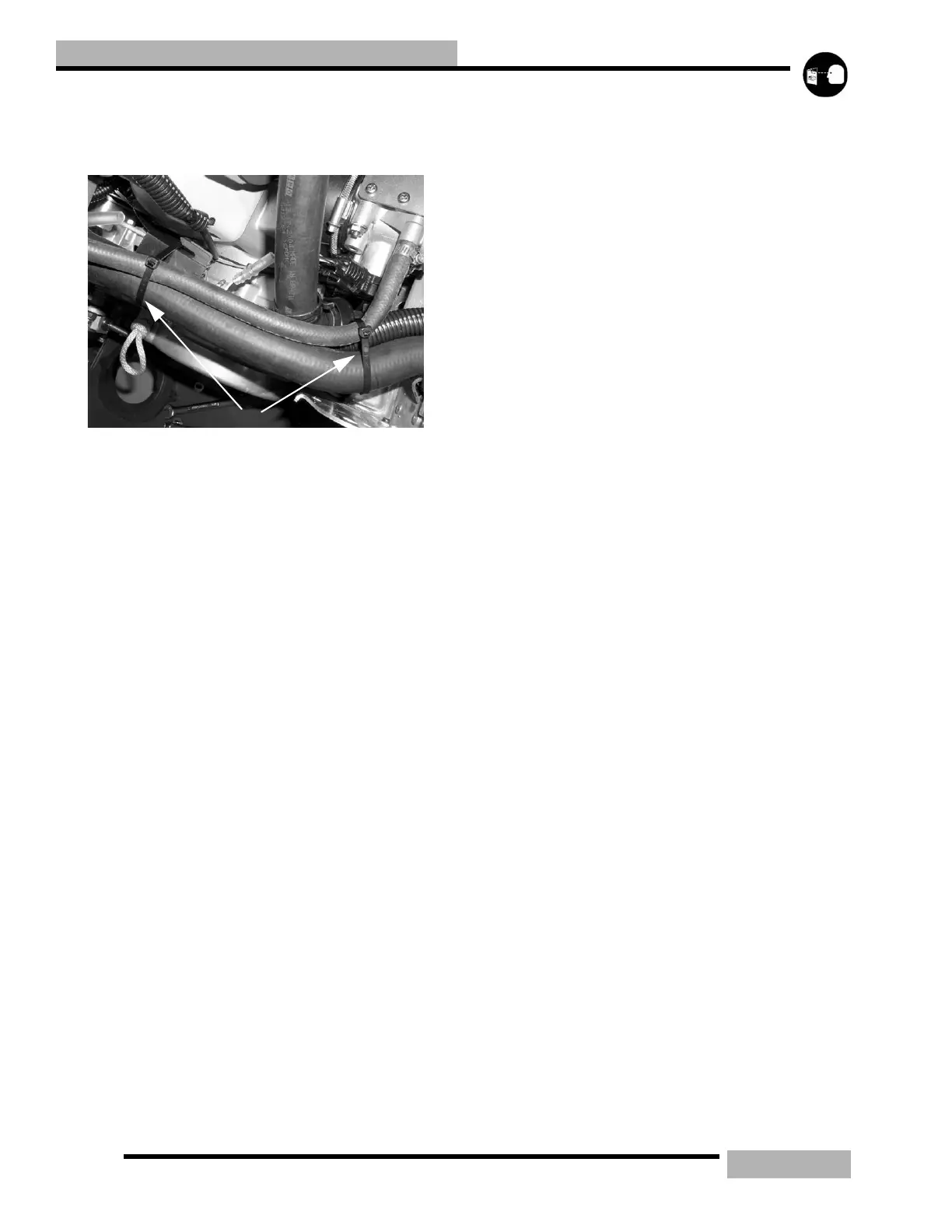

35. Install a cable strap (9) around the coolant lines and the
wiring harness at the relay area of the wiring harness and
at the shock tower area.
36. Install the left hand brace onto the left side of the bulkhead
in the same manner as the right side.
37. Hook up the fuel filter.
38. Install the fuel filter bracket
NOTE: The fuel filter and holder are located on the
top rear faster on the brace.
39. Torque all fasteners to 12 ft-lb (16Nm).
40. Install the fender plug.
41. Check engine torque stop and adjust if needed. ‘TORQUE
STOP” on page 3.24
42. Install exhaust gaskets and header. Torque the header
fasteners to 22 ft-lb (30Nm).
43. Install the boost box to the throttle body.
44. Tighten the boot clamps.
45. Hook up the intake air sensor.
46. Install the fuel tank, and seat. ‘SEAT and FUEL TANK”
on page 12.4
47. Install the console. ‘IQ CONSOLE REMOVAL /
INSTALLATION” on page 12.6
48. Route recoil rope through the chassis and install recoil
handle.
49. Install the clutches and belt. ‘DRIVE CLUTCH
INSTALLATION” on page 7.19 or ‘DRIVEN CLUTCH
INSTALLATION” on page 7.20 ‘BELT
INSTALLATION (Team Driven Clutch)” on page 7.5
50. Install the exhaust system. ‘EXHAUST
INSTALLATION” on page 3.16
51. Hook up plug wires to spark plugs. Plug wires are labeled.
52. Install the plenum. ‘IQ 700/900 AIR INTAKE
INSTALLATION” on page 12.7
53. Install side panels.
