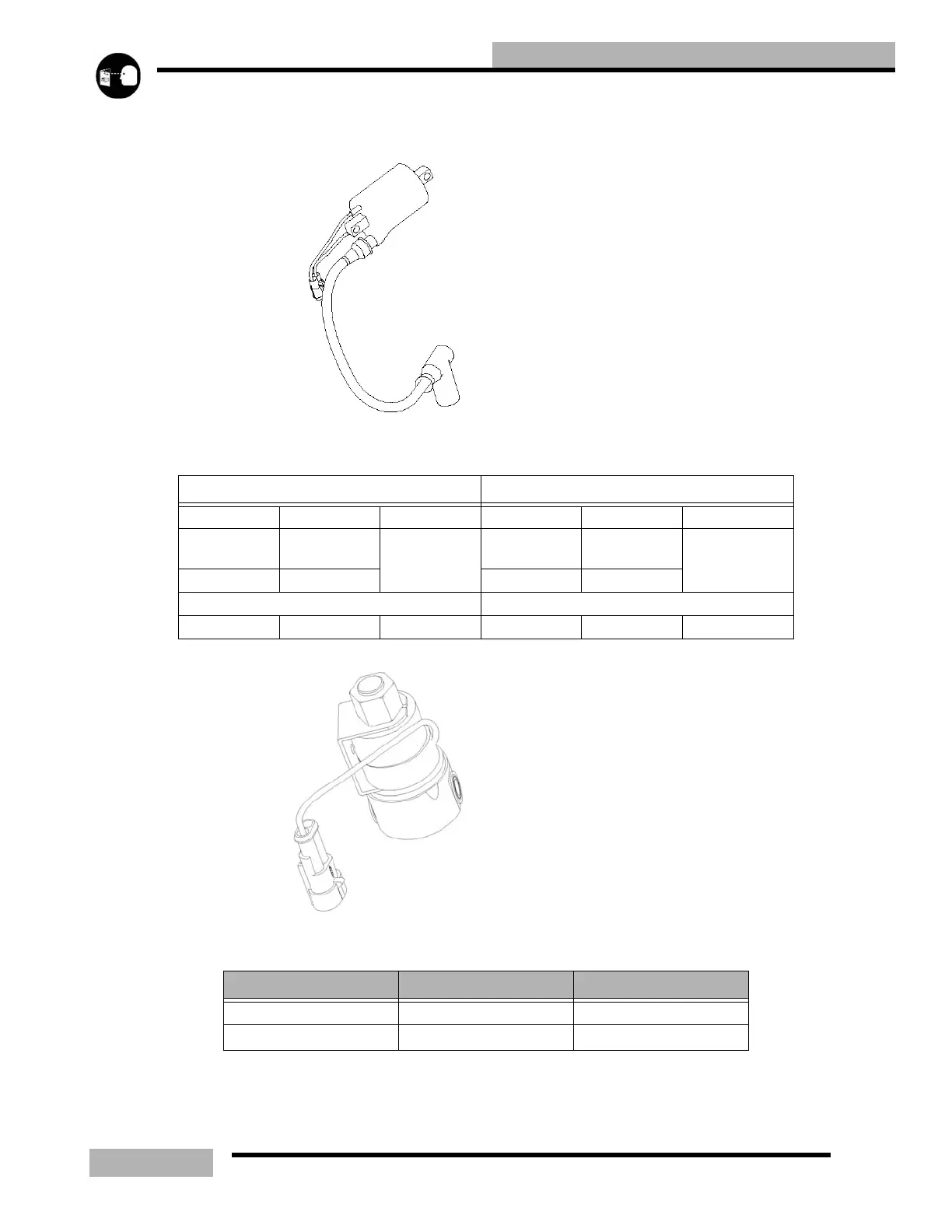

13.25
ELECTRICAL
IGNITION COIL
Ignition coils provide ignition
spark for each spark plug.
Below are the values for each
coil.
EXHAUST VALVE
SOLINOID
This solenoid will open and
close the exhaust port vacuum
at a calibrated TPS and RPM.
Helps provide maximum
power across the power band.
15Ω from White/Yellow to
RED on the solenoid. Fail safe
mode will keep the valves
closed and the unit will have
no top end. This solenoid
valve type a 2 way and is normally closed.
Ignition Coil
Table 13-19: Ignition Coils
PRIMARY COIL #1 (MAG) PRIMARY COIL #2 (PTO)
COLOR ITEM VALUE COLOR ITEM VALUE
BLACK/RED ECU
=.38 -.52OHMS
BLACK/
YELLOW
ECU
.38 -.52OHMS
BROWN Ground BROWN Ground
SECONDARY COIL SECONDARY COIL
White/Black 18k ohms White/Black 18k Ohms
EV Solenoid
Table 13-20: EV Solenoid
COLOR ITEM VALUE
W/Y ECU Switches to ground
Red Batt + (12VDC) Battery Voltage
