7.21
CLUTCHING
TEAM RAMPS EXPLAINED

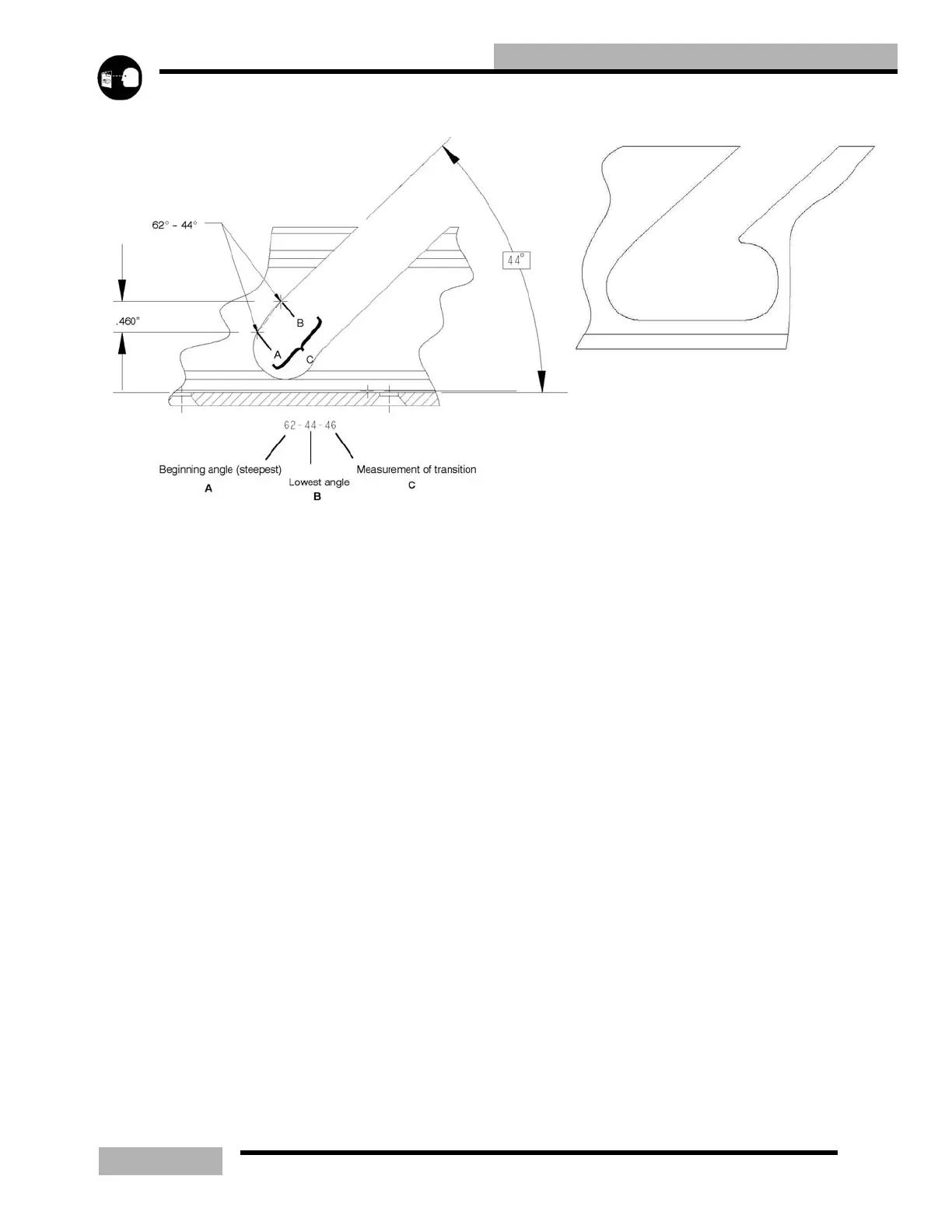

The ramps for the Team roller clutch is designated by the angle and length of the angle on the back side of the ramp. You will see
that the first number (A) designates the steepest angle, which is the starting angle of the ramp. The second number (B) designates
the lowest angle that it progresses to. The last number (C) is the measurement (length) at which the transition takes place. Electric
reverse ramps have only one set of angles.
The non reverse ramps have two sets of angles that can be used for the desired angles. The non reverse ramps can not be used on
a sled that has electric reverse. Using reverse with a non reverse ramp may cause damage to the driven clutch.
NON ER RAMP
ER RAMP
