7.5
CLUTCHING
DRIVE BELT REMOVAL WITH TEAM
CLUTCH
NOTE: Before attempting to remove the drive belt,
verify the engine is in forward mode, not reverse
(PERC) or, the chaincase is in forward mode (PERC
4). Turn the key to the “OFF” position and allow the
engine to come to a complete stop.
To ensure belt life, install belts so they operate in the same
direction of rotation. Position the identification numbers so
that you can read them standing on left side of machine. This
will keep the belt rotating in the same direction. If belt has
been operated with numbers readable from right side of
machine, re-install belt in this direction.
1. Remove the clutch guard retaining pin, and open the clutch
guard.
2. Apply and lock the parking brake.

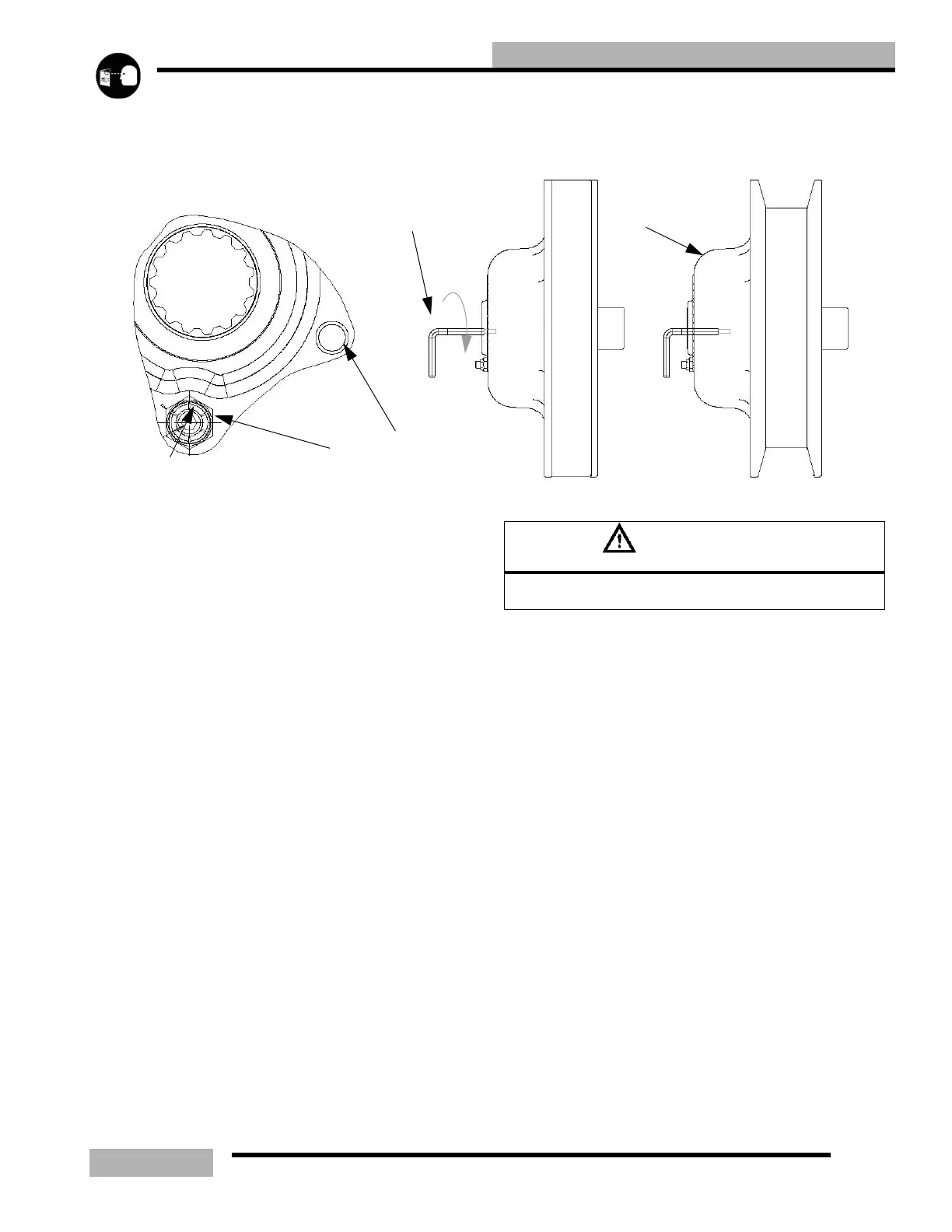

3. Insert the “L” wrench (A) into the threaded hole (B)
located on the driven clutch, and turn it clockwise until the
clutch sheaves are in the open position (C).
NOTE: L wrench PN 2874857
4. Remove the drive belt.
BELT INSTALLATION (Team Driven Clutch)
1. With the “L” wrench inserted into the threaded into hole
(B) and the sheaves in the open position (C), install the
drive belt.
NOTE: Install belt so that the numbers can be read
correctly on the left side of the machine.
2. Turn the “L” wrench counter clockwise until the driven
clutch sheaves are in the closed position.
3. Remove the “L” wrench.
4. Close the clutch cover and secure the cover with the cover
pin.
A
B
C
D
E
WARNING
It is very important to remove the L wrench after the belt
is installed or damage to the clutch will occur.
