CHAINCASE DRIVE TENSION
1. Elevate the rear of the machine so that the track is off the
floor.
2. Rotate the driven clutch counterclockwise to move all the
chain slack to the tensioner side.
3. Lock the parking brake.

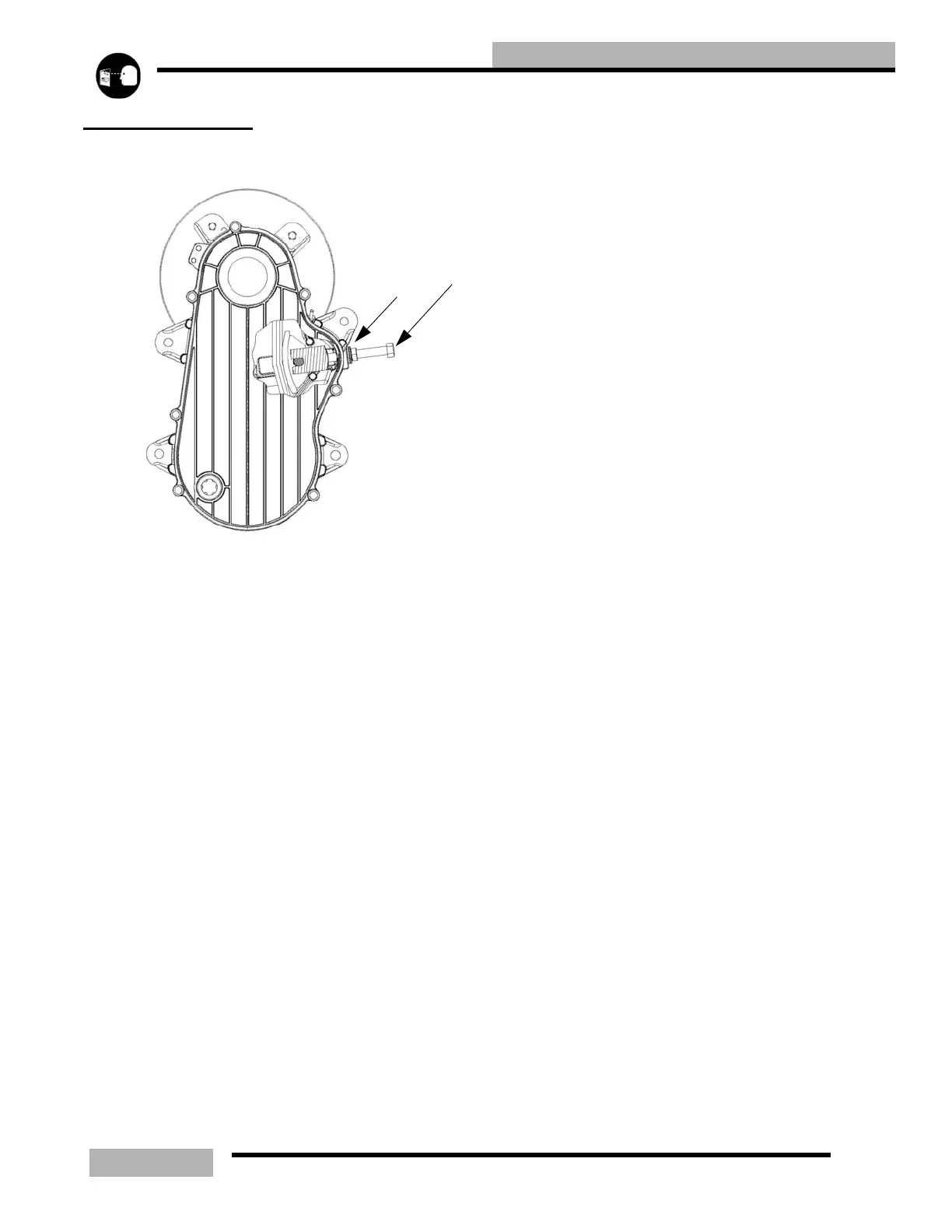

4. Loosen the adjuster bolt jam nut (B)
5. Finger tighten the adjuster bolt (A).
6. Back off the adjuster bolt 1/4 turn out (counterclockwise).
7. Tighten the jam nut while holding the adjuster bolt.
8. Release parking brake.
NOTE: It may be necessary to remove the exhaust
pipe and resonator to access this area.
