6.17
ENGINE

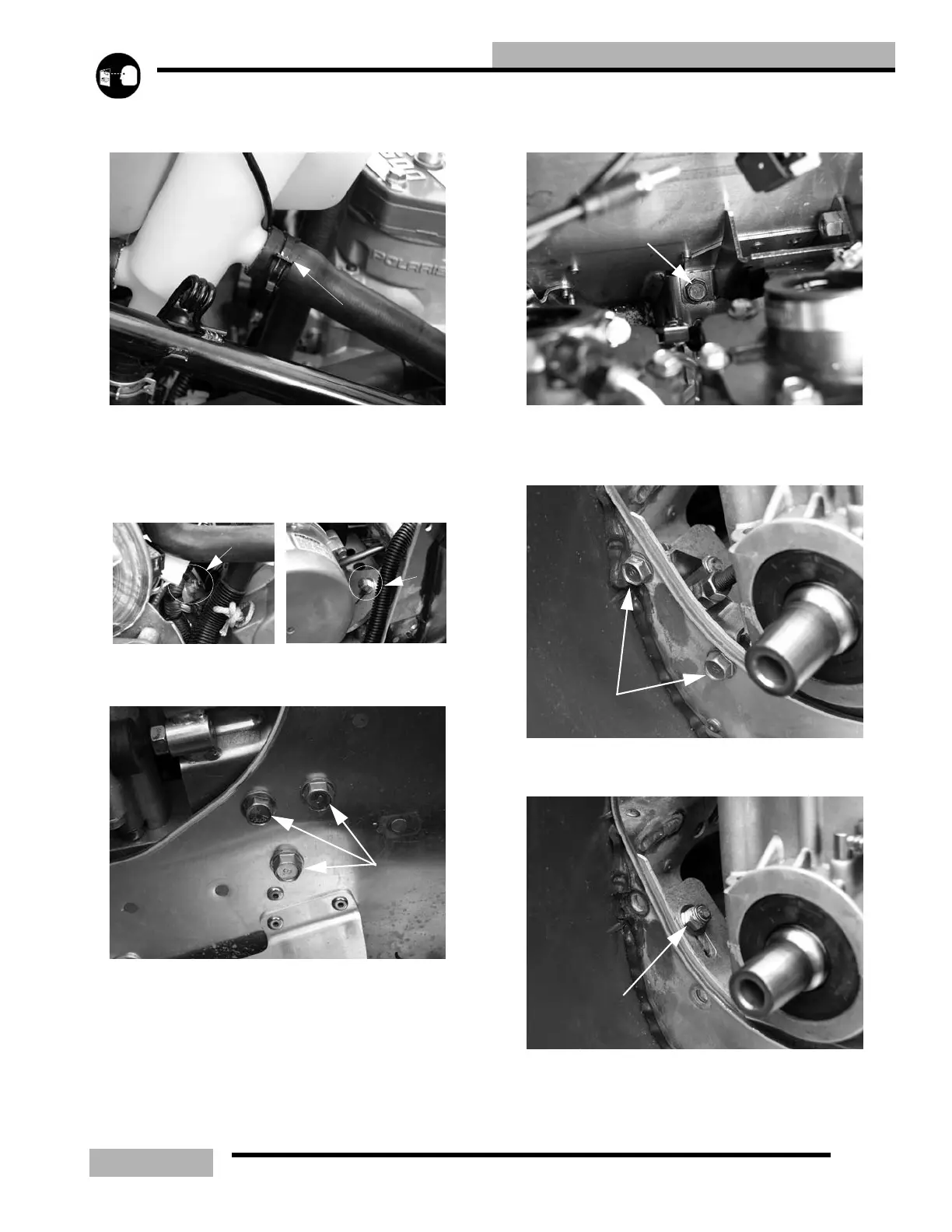

22. Move the hose clamp (9) and remove this front radiator
hose from the coolant bottle, and secure it out of the way.
23. Remove the coolant supply hose that is located at the
bottom of the coolant bottle and secure it out of the way.
This will come out with the engine.
24. Remove the rear (10) and left (11) motor mounts located
on the right hand side of the engine.
25. Remove the left hand rear torque stop fasteners (12)
26. Remove the inside motor mount fastener (13), located
under the PTO carburetor boot.
27. Remove the rear torque stop plate.
28. Remove the front left hand torque stop assembly fasteners
(14) and then remove the torque stop assembly.
29. Remove the LH front motor mount nylock nut (15) and
washer.
9
RH Rear
RH Front
10
11
12
13
14
15
To Next Page
