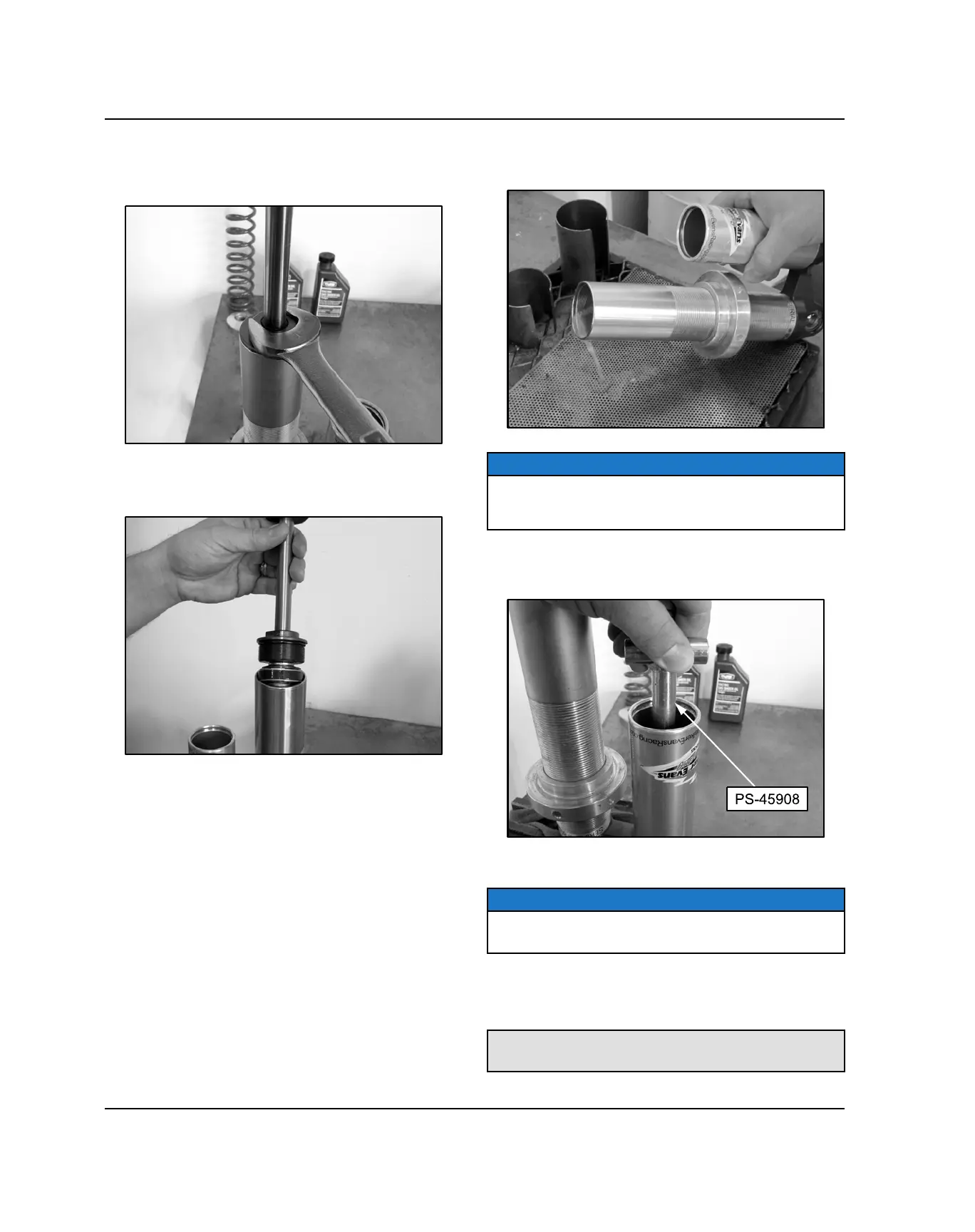

8. Using a 1" open-end wrench or adjustable wrench,
loosen and remove the bearing cap from the shock
body.
9. Slowly lift up and remove the shock rod assembly
from the shock body.
10.Remove and properly dispose of the oil from the
shock body.
NOTE
Insert the IFP Tool (PS-45908) and cycle the Internal
Floating Piston (IFP) a few times to purge the shock oil
from the reservoir.
11. Remove the floating piston from the shock reservoir
using the IFP Tool (PS-45908).
12.Clean and inspect ALL parts and replace as needed.
NOTE
Seal kits are available and should be installed at this
time if seals or O-rings are damaged or worn.
13.Use the appropriate shock rod holding tool and a vise
to mount the shock rod vertically with the threaded
end upward.
Front Shock Rod Holding Tool: 2872429
Rear Shock Rod Holding Tool: PU-50931
