FUESES / RELAYS
OVERVIEW / OPERATION
Located in the fuse box under the dash, the fuses provide overload protection for wiring and components such as the
instrument cluster, ECU, EFI system, main harness, lights, and accessories. The relays assist with component
operation like the cooling fan, fuel pump, EFI system, and drive system.

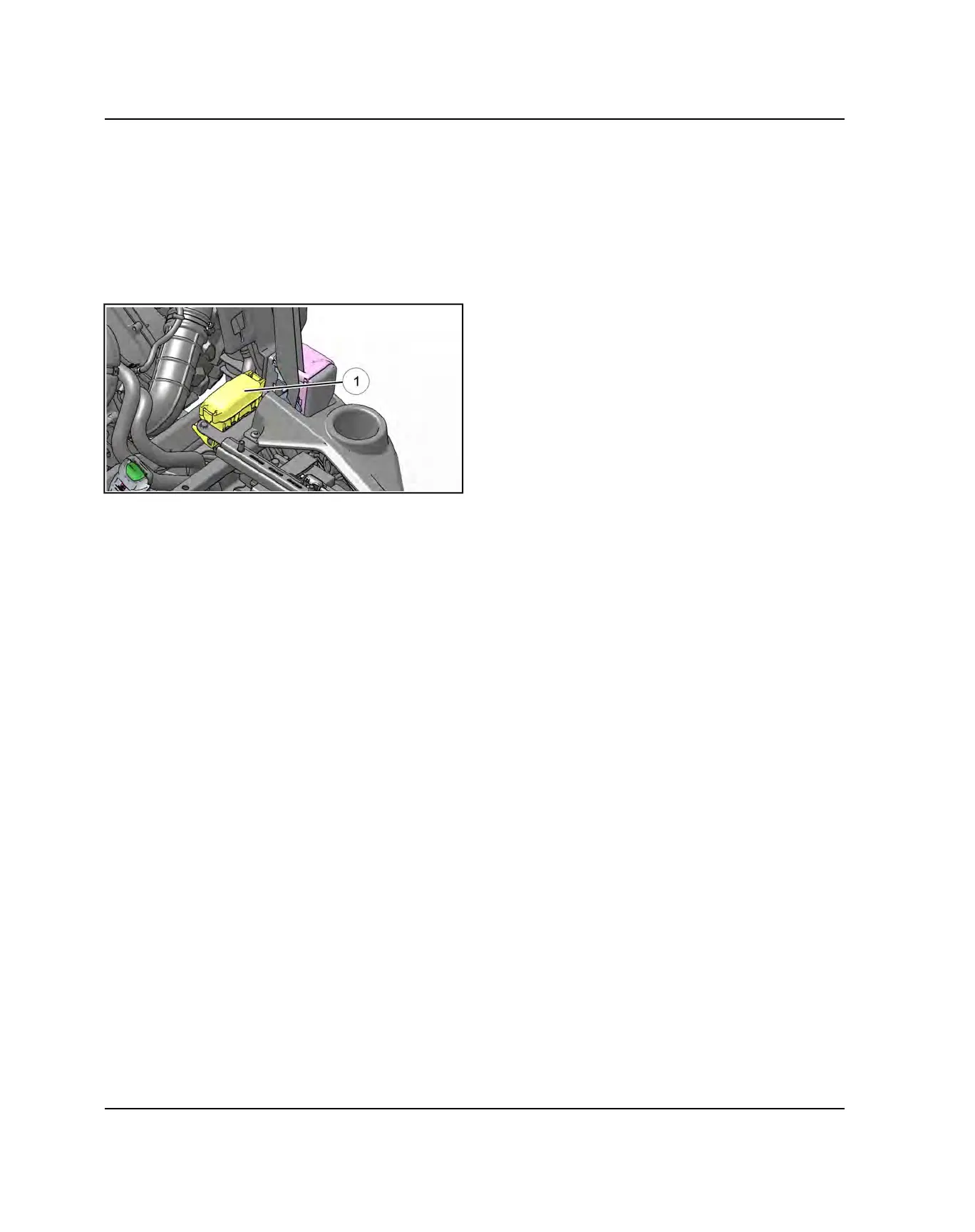

FUSE / RELAY BOX LOCATION
The fuse box
q
is located behind the engine
compartment access panel.
