THE PERFECT FIT
Handlebar Adjustments
Handlebar Angle

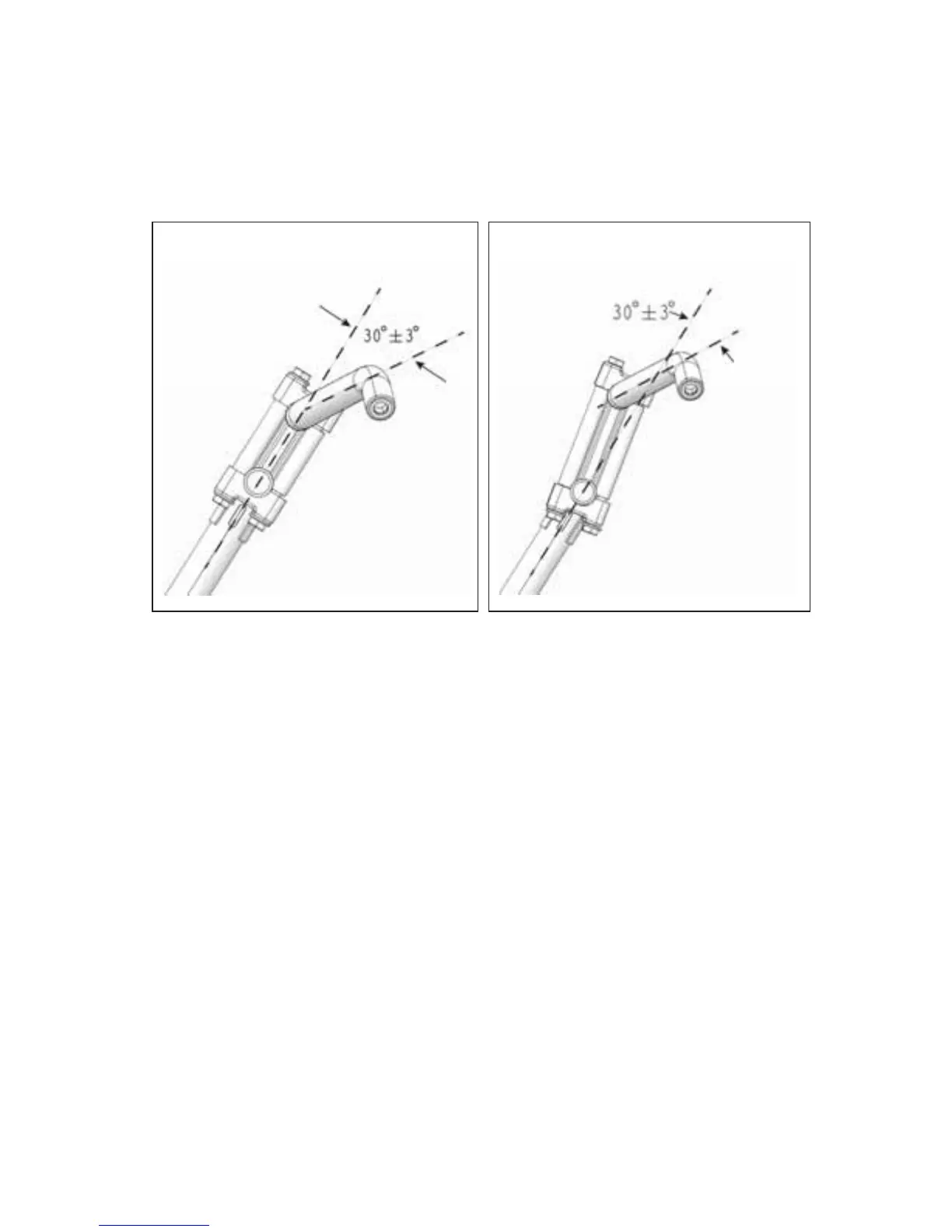

Handlebar angle can be adjusted to suit rider preference. Factory
settings are shown below.
1. Loosen the four bolts on the top riser block.
2. Adjust the handlebar upward or downward to the desired angle. Be
sure the handlebar, brake lever and throttle lever operate smoothly
and do not hit the gas tank, windshield or any other part of the
machine when turned fully to the left or right. If necessary, loosen
the set screws for the left and right controls, rotate the controls
slightly, then tighten the set screws to the proper torque. See page
62.
NOTICE: Do not stretch wires while adjusting the controls. Stretching the wires
could damage the handwarmers.
3. Tighten the bolts.
Torque: 14.8 ft-lbs (20 Nm)
