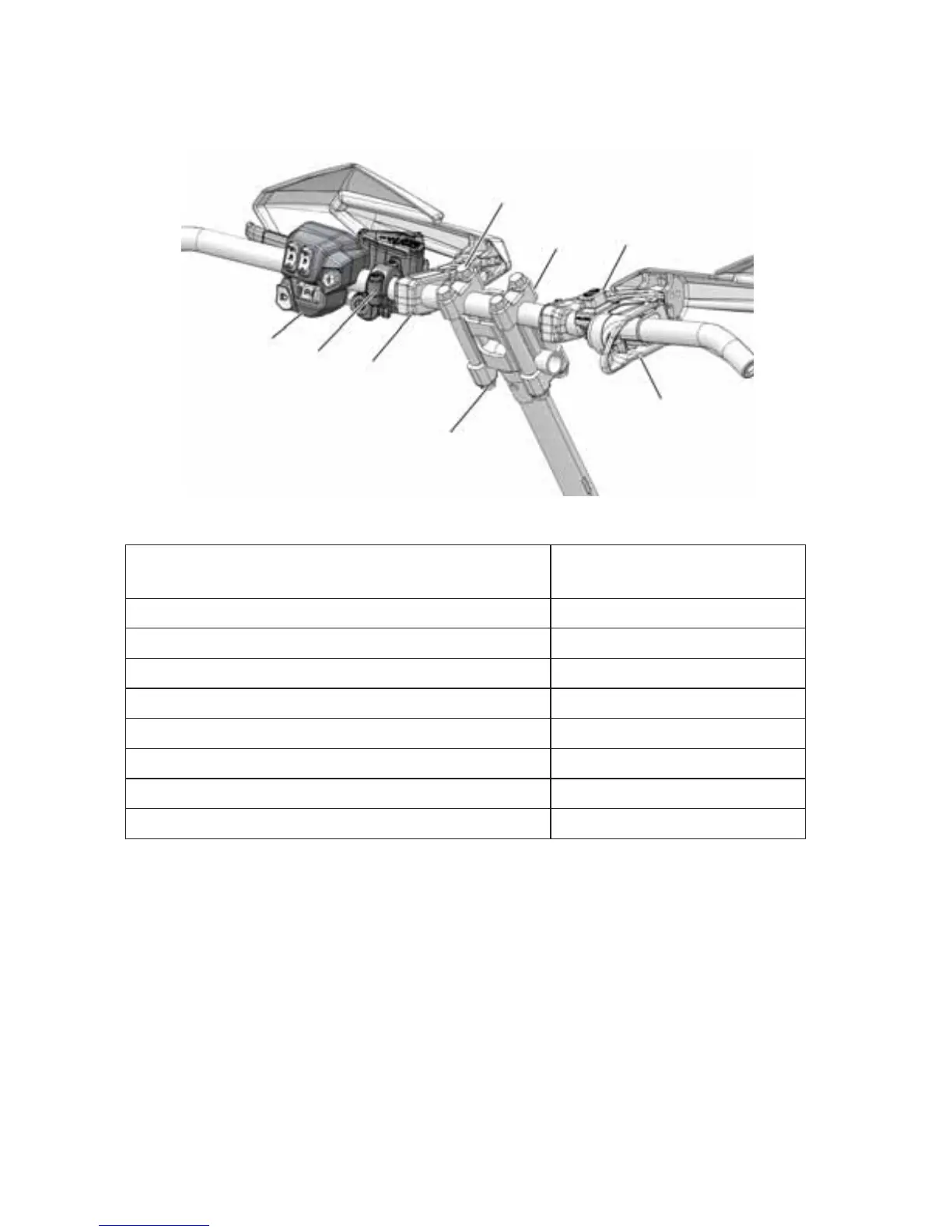

Handlebar Component Fastener Torques
Component Torque
Do not over-tighten
1. Left Handlebar Control Block 20 in-lbs (2.3 Nm)
2. Brake Lever / Master Cylinder 70 in-lbs (7.9 Nm)
3. Hand Guard Mounts (if applicable) Hand-Tight
4. Upper / Lower Riser Clamps 14.8 ft-lbs (20 Nm)
5. Auxiliary Engine Stop Switch Set Screw 12 in-lbs (1.4 Nm)
6. Throttle Lever Block Set Screw 27 in-lbs (3.1 Nm)
7. Throttle Lever Block Cover Screws 6 in-lbs (0.7 Nm)
8. Riser -
2
1
3
4
6/7
5
8
4
Shown with riser cover removed for clarity
