THE PERFECT FIT

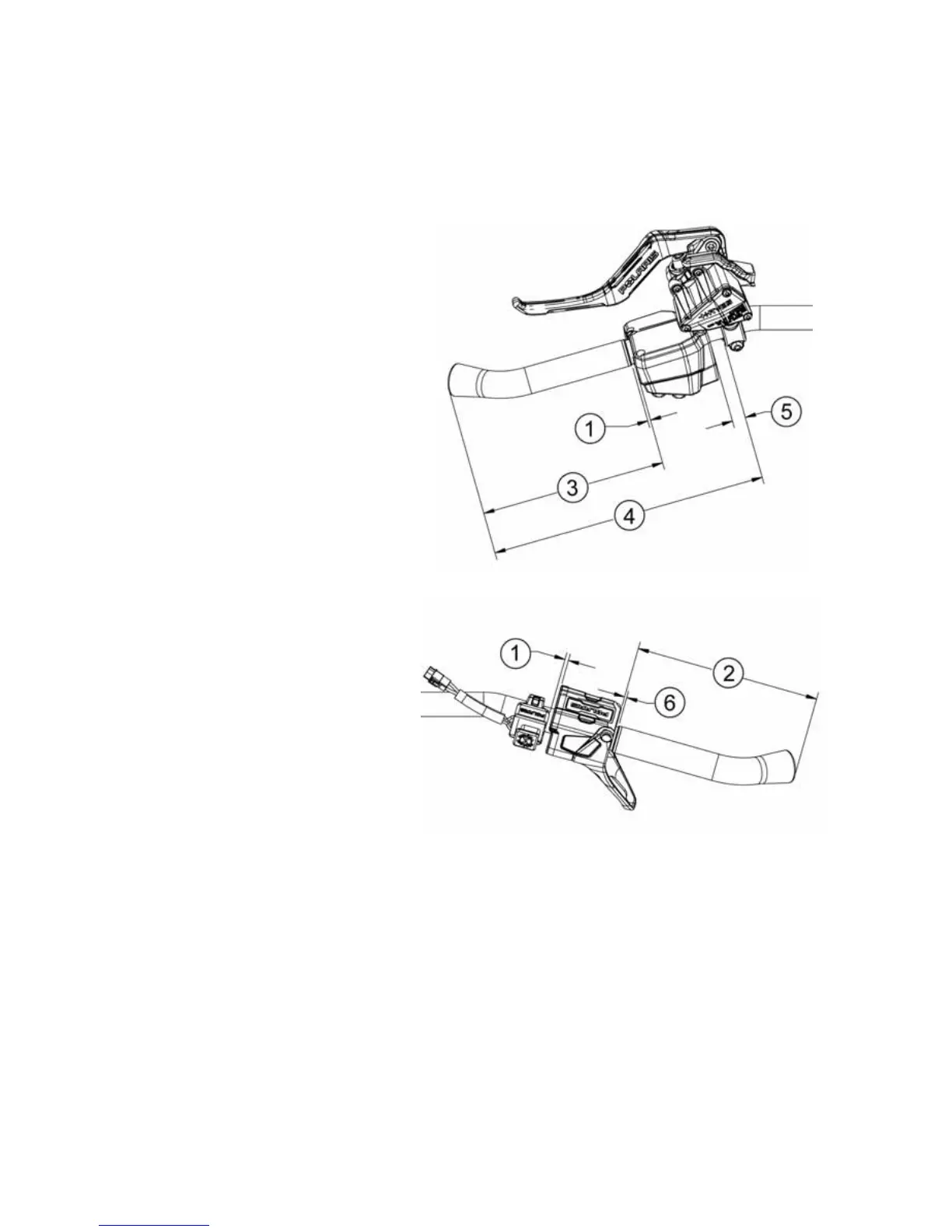

Handlebar Component Locations
Refer to the following illustration and measurements to position
handlebar components at factory-specified locations.
Handlebar Component Alignment Measurements
1. .011 in. (3 mm)
2. 6.65 in. (169 mm)
3. 6.7 in. (170 mm)
4. 10 in. (254 mm)
5. .47 in. (12 mm)
6. .08 in. (2 mm)
